A next-generation analog synthesizer

minilogue’s newly developed analog synthesizer circuit delivers polyphony and full programmability at a great price --- exactly what today's musician needs. With the minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display.

The synth circuits for minilogue are all new designs, delivering an uncomparable synthesizer experience. A four-voice polyphonic true-analog synth, it has an interface designed for accessibility.

"The minilogue is fun and easy, which is sometimes overlooked in hardware. I want something I can generate musical sounds, and fast. Working on the presets was great, I breezed through a lot of different styles as the architecture isn’t so deep"

"The minilogue has been an insane amount of fun to use. The interface is very easy and intuitive. I love its small portable size and 4 voice analog engine sounds incredible."

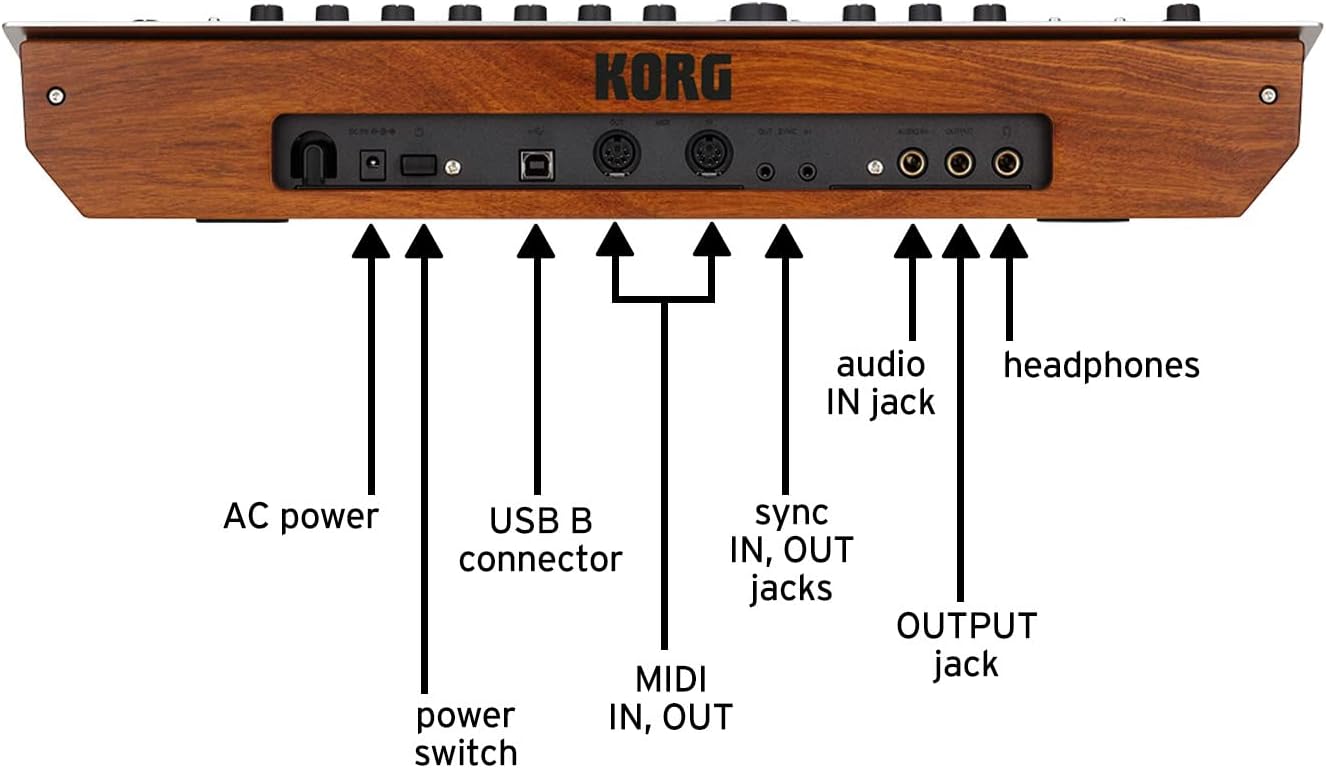

In addition to the standard MIDI connectors, the minilogue provides a sync connector that can be easily connected to Korg's groove machines. Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback.

Keyboard37-keys (Slim-key, velocity sensitive)Sound GenerationAnalog synthesisMaximum Polyphony4 voicesProgram200 programs (100 Presets / 100 Users) Each program includes voice mode and sequence data settings Up to eight favorite programs can be registeredVoice Modes8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain) VOICE MODE DEPTH can vary different parameters in each modeMain Synthesis Parameter VCO1: Octave, Wave (Saw, Triangle, Square), Pitch, Shape; VCO2: Octave, Wave (Saw, Triangle, Square), Pitch, Shape; VCO2 MODULATION: Cross Mod Depth, Pitch EG Int, Sync, Ring; MIXER: VCO1, VCO2, Noise; FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity; AMP EG: Attack, Decay, Sustain, Release; EG: Attack, Decay, Sustain, ReleaseSequencer16-step polyphonic sequencer. Motion sequence can be used on up to four parametersControls41 dedicated panel controls deliver immediate parameter access A slider can control different parameters for each programDisplayReal-time OLED oscilloscope provides visual feedback of parameter changesConnectorsHeadphones (6.3mm stereo phone jack), Output (6.3mm monaural phone jack), Audio In (6.3mm monaural phone jack), Sync In (3.5mm monaural mini jack), Sync Out (3.5mm monaural mini jack), MIDI In, MIDI Out, USB Type BPower SupplyAC adapter (DC9V)Power Consumption8 WDimensions (W x D x H)19.69" x 11.81" x 3.35"Weight6.17 lbs

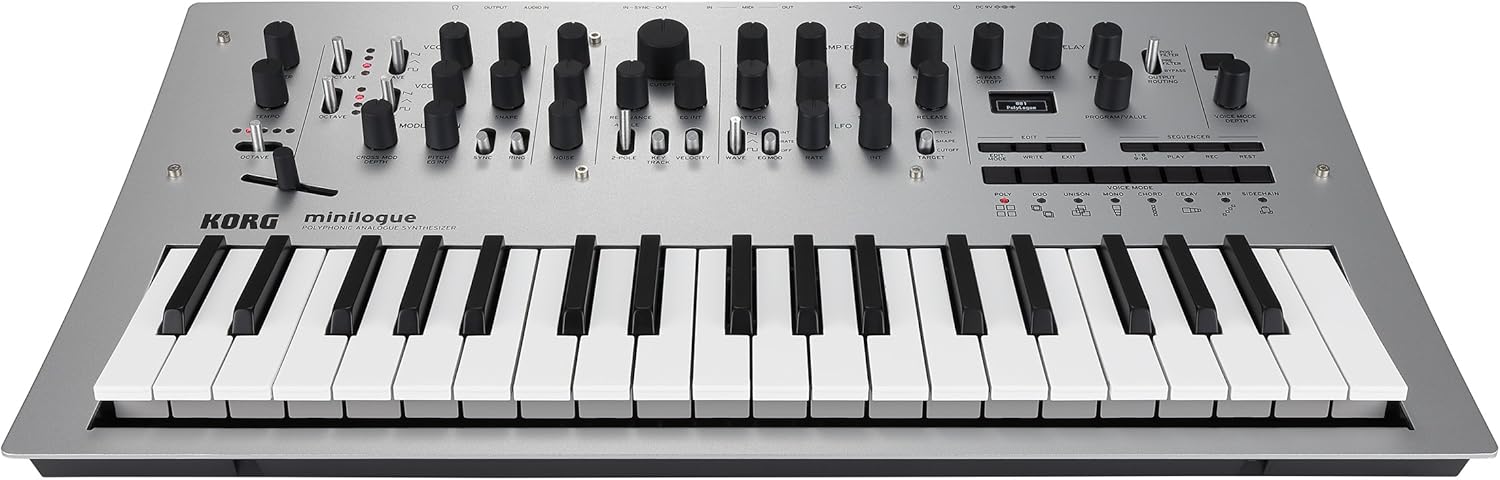

Meet minilogue; the stylish, innovative, 37 key analog polyphonic synthesizer.

True analog sound.

ARTISTS

Jimmy Edgar

Richard Devine

Sync with the groove machine.
