JOYO EQ Pedal 10 Band Equalizer (31.25Hz-16kHz) for Electric Guitar, Bass and Multi-string Guitars (R-12)

JOYO 10 Band Controller Equalizer EQ Pedal (R-12), directly provided by manufacturer of JOYO Technology, with over decade of brand reputation, We will provide the best ever excellent A-S- Service, much better than any other distributors.

SOME TIPS:

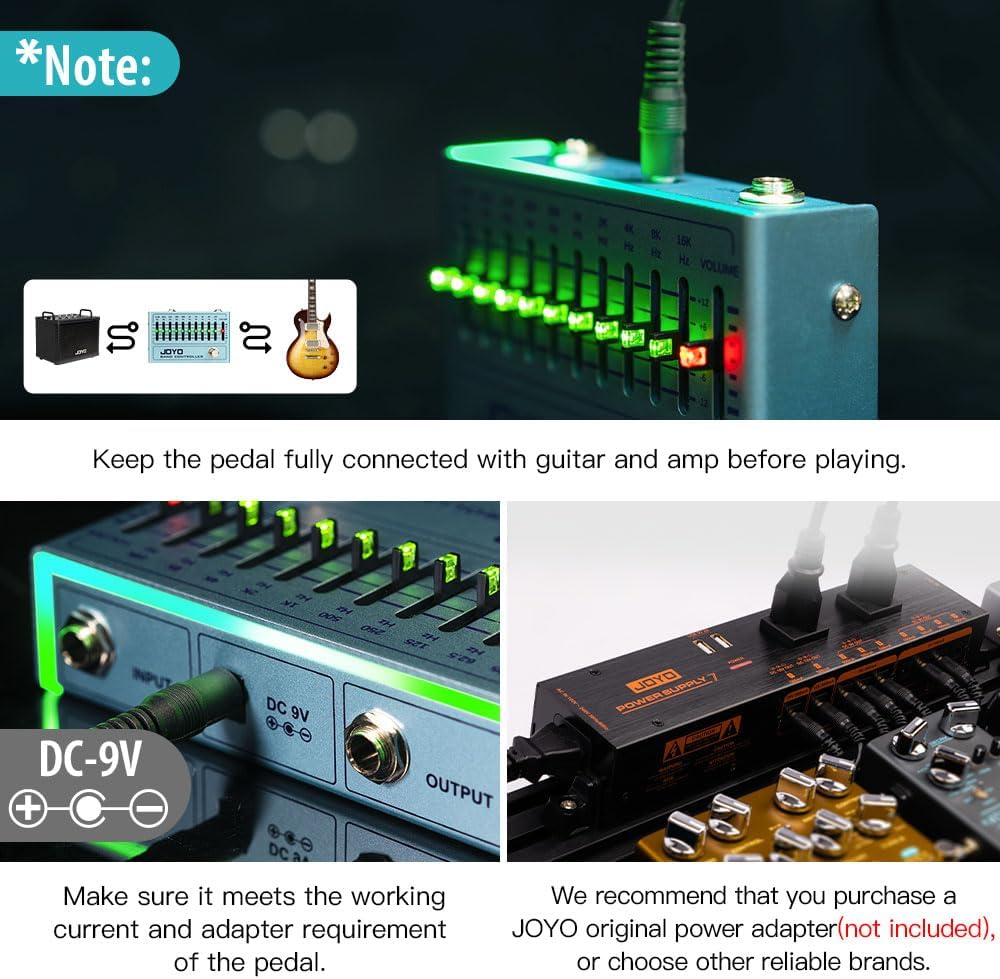

* Before you test the pedal or before playing, make sure the guitar is fully connected with the pedal;

* More importantly, you need to make sure it meets the working current requirement of each single pedal.

* In order to make JOYO pedals work properly, avoiding unexpected noise caused by power supply, we recommend that you purchase a JOYO original power adapter, or choose other reliable brands.

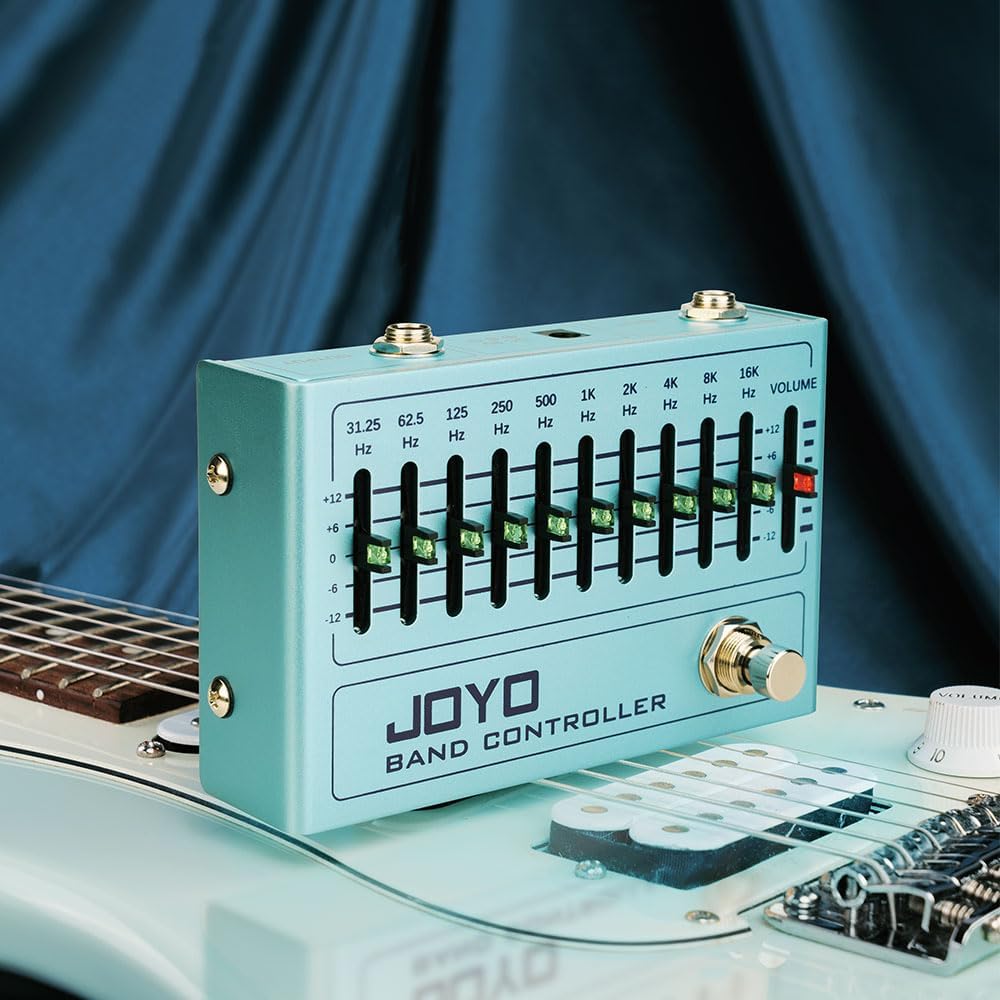

• A 10 band slide control dials in deep lows, fantastic bright mids and crystal clear high end frequencies.

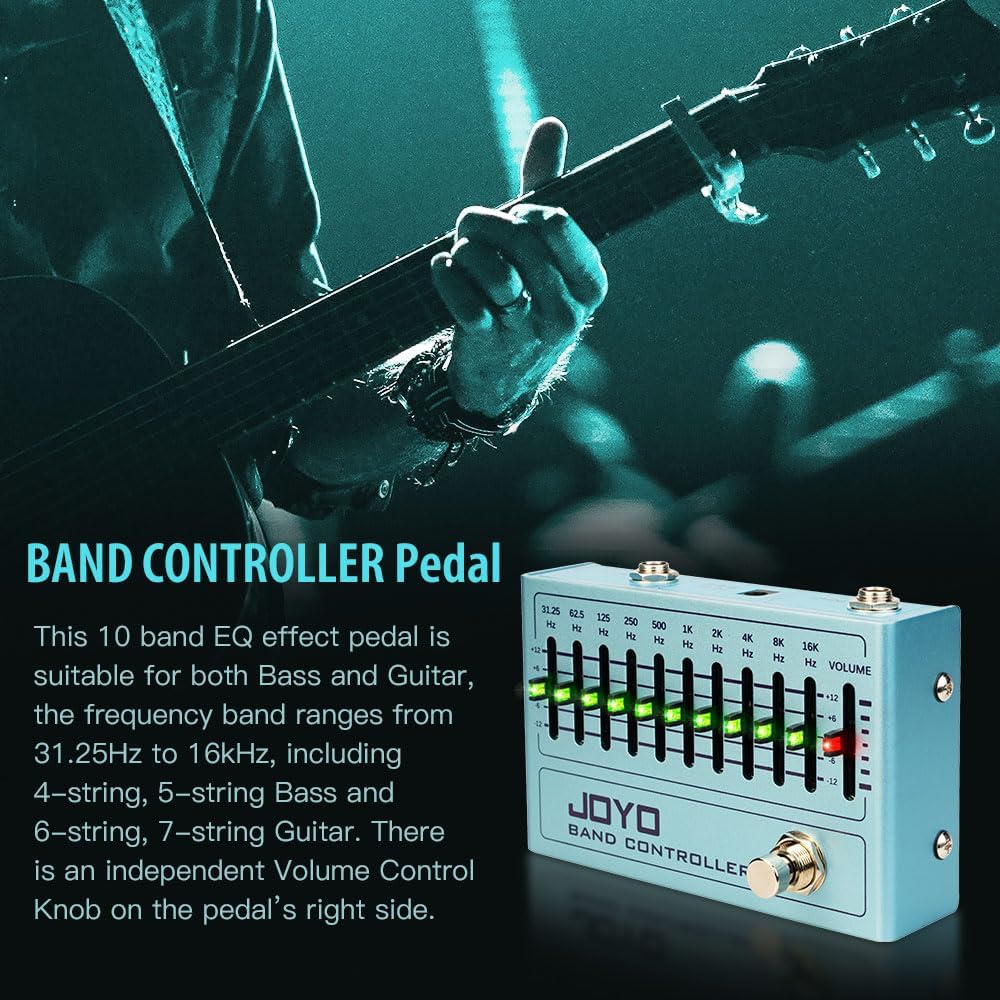

• JOYO 10 band Graphic EQ effect pedal is suitable for both Bass and Guitar, giving you shaping control over frequency band ranges from 31.25 Hz to 16 kHz.

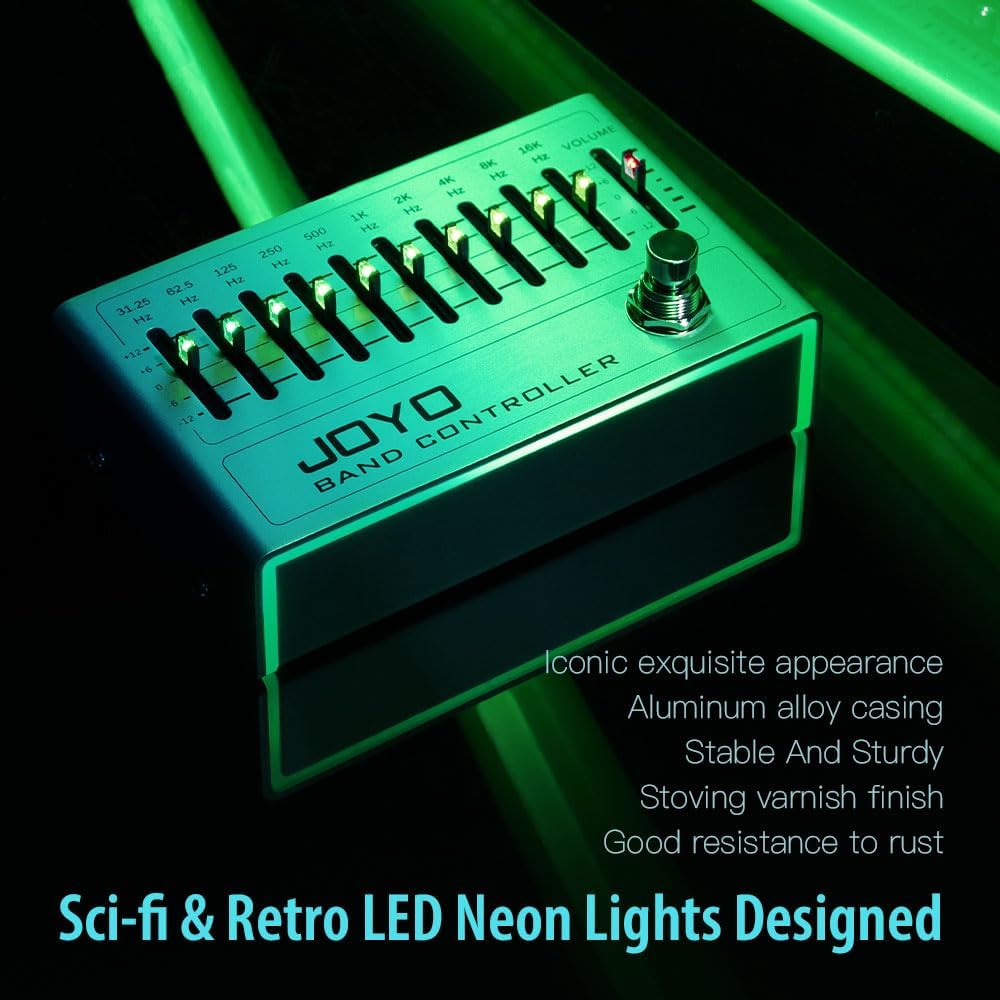

• Ambience LED light on the front and rear sides of the unit, can be set in one of two ways: You can either set the lights to be on all the time or it can come on when the pedal is engaged. The setting is via a sunken switch on the underside of it.

This 10 band EQ effect pedal is suitable for both Bass and Guitar:

• The frequency band ranges from 31.25 Hz to 16 kHz, including 4-string, 5-string Bass and 6-string, 7-string Guitar.

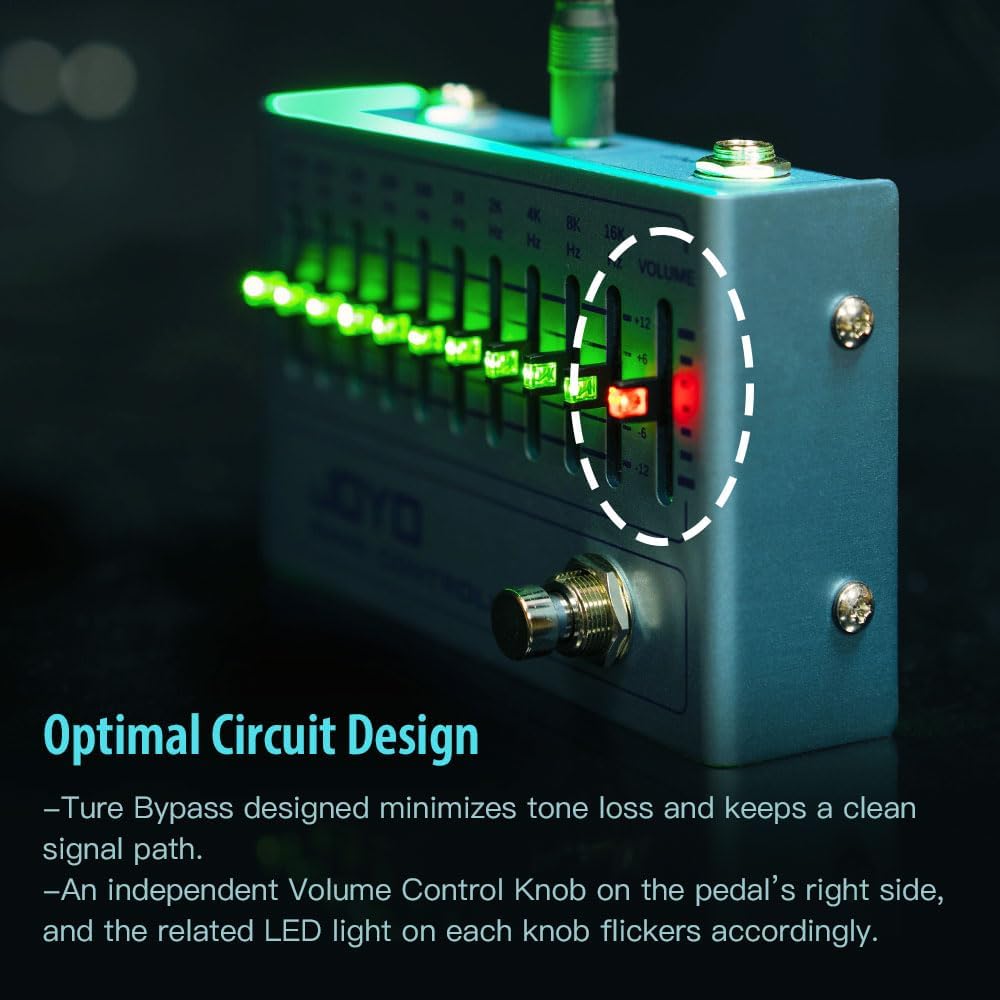

• On the pedal’s right side, there is an independent Volume Control Knob, + or -12 dB boost making it a perfect boost for making a solo stand out, or to push a tube amp into overdrive mode, and the related LED light on each knob flickers accordingly.

LED light control switch:

1. SYNC mode: the LED light illumines when the footswitch is turned on, otherwise the it will go out.
2. ALWAYS mode: the LED light is always on.
3. OFF mode: the LED light is off.

Precautions:

1. Please do not dissemble or repair the pedal by yourself.
2. Please keep the manual and box for future reference.

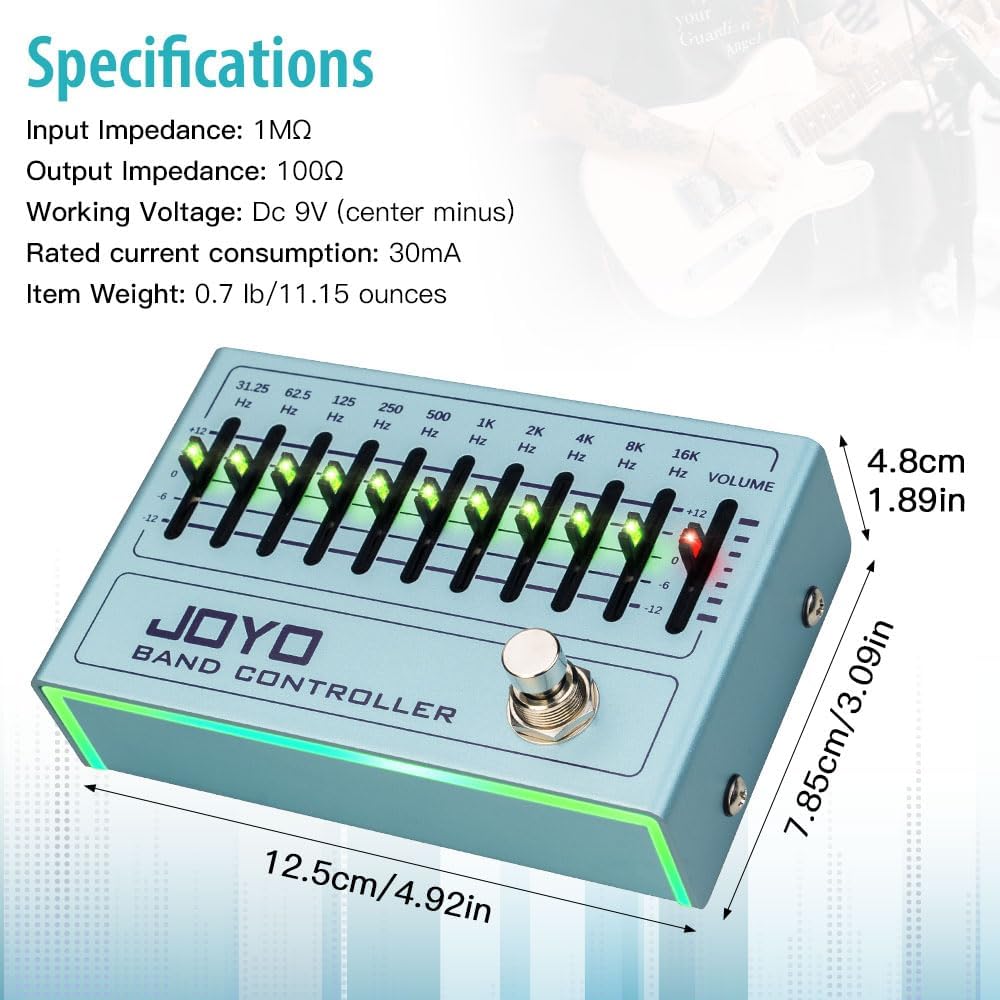

Input Impedance1MΩOutput Impedance100ΩSignal Bypass TypeTrue BypassRated Current Consumption30mA Working VoltageDC 9V(center minus)Power SupplyOnly supports external power supply, with no battery compartmentDimensions125(L)X 78.5(W)X 48(H) mmWeight290gPackage included1 x JOYO R-12 10 Band Controller Equalizer EQ Pedal,1 x User's Manual. (Power Supply Adapter is NOT included.)

Specifications
