HOTONE Guitar Multi Effects Processor Multi Effects Pedal Touch Screen Guitar Bass Amp Modeling IR Cabinets Simulation Guitar Effects Pedal Multi FX Processor Ampero II Stomp

“Upgrade” is more than a 7-letter word. It embodies the continuation and evolvement beneath the surface, and embraces revolution and creativity outside the box. It’s what Ampero II Stomp does. Throughout years of grinding to establish its core technologies from empirical practice, Hotone team proudly presents this soul partner for your sophisticated taste in the sound of the music.

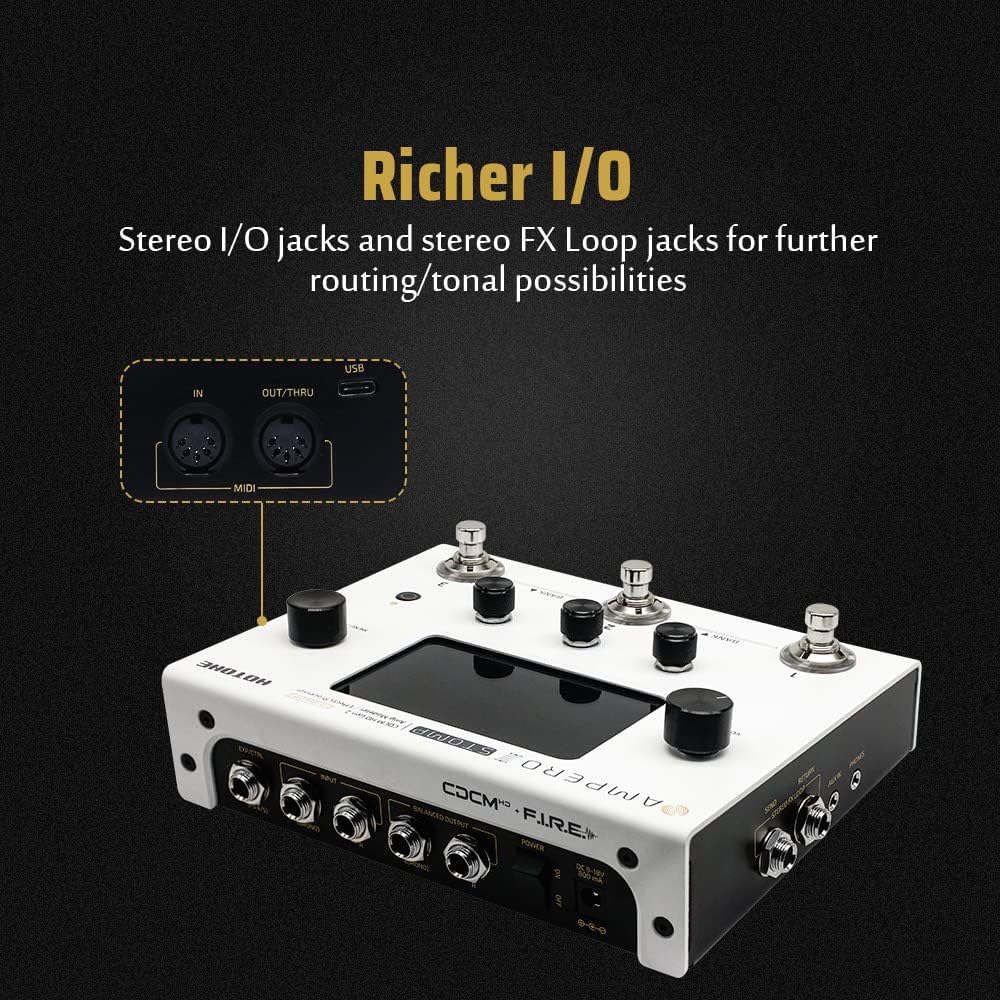

1. BALANCED OUTPUT: 1/4" TRS balanced stereo outputs

2. INPUT: 1/4" TS unbalanced stereo inputs for guitar or other instruments

3. EXP/CTRL: 1/4" TRS input, for connecting an external expression pedal/footswitch controller

4. Power Supply Connection: Power supply input (9-18V DC center negative)

5. Power Switch: Turns power on/off

6. VOLUME Knob: Adjusts the overall volume

7. MENU/VALUE Knob (Main Knob): Turning or pressing this knob allows you to change menus and adjust parameters

8. USB: USB 2.0 Type-C jack for connecting to your computer

9. 10. MIDI: Standard 5-pin MIDI input and thru output

11. STEREO FX LOOP: 1/4" TRS unbalanced stereo input (RETURN)/output(SEND) jacks

12. 13. AUX IN & PHONES: 1/8" stereo aux input and phones output

14. Display Screen: Displays unit current status. Use the touchscreen to select effects, edit patches, and make tone adjustments

15. Quick Access Knobs: Use to adjust parameters on the lower part of the screen

16. Footswitches: Use to change patches, turn effects on/off, set tap tempo, etc.

17. Device Lock Button: Used to lock or unlock the device

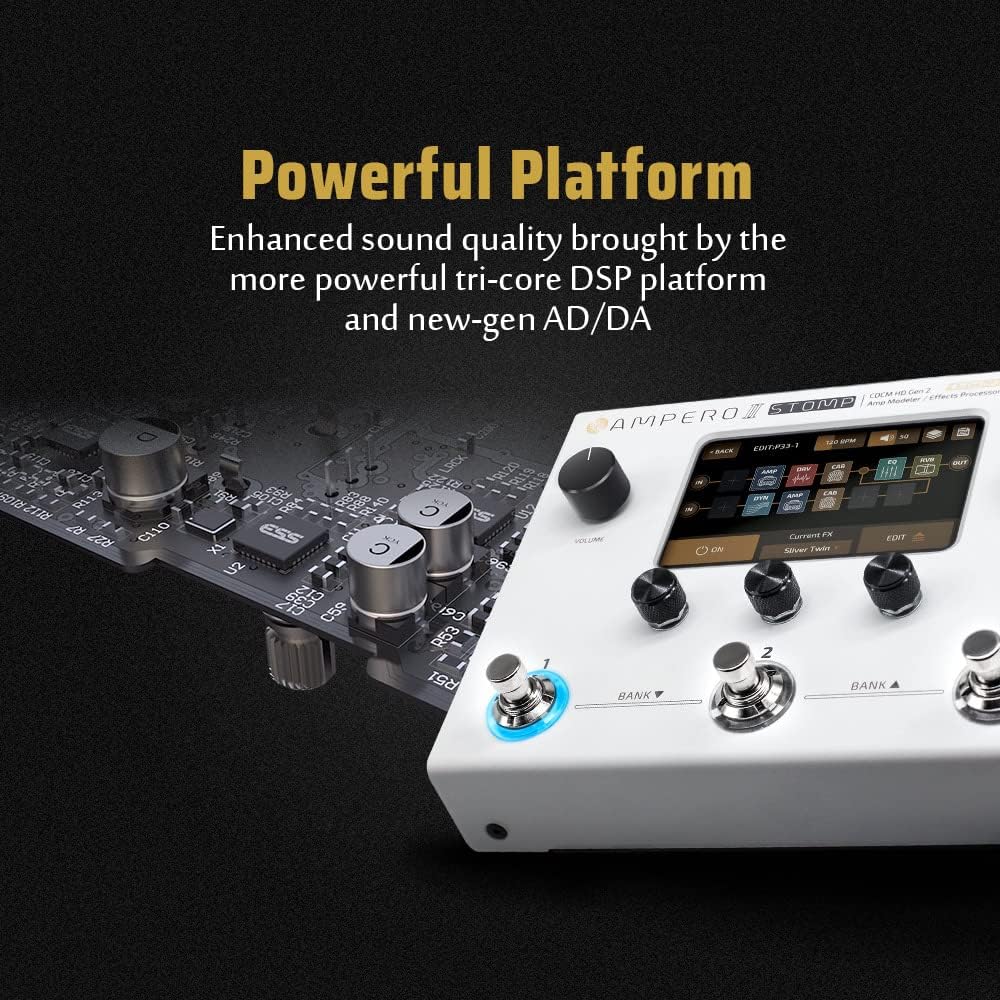

Ampero II Stomp implements the brand new tri-core digital platform and independent AD/DA, combined with our more advanced CDCM HD and F.I.R.E modeling technology, creating more musically dynamic and vivid tones.

Good news for you all artists, Ampero II Stomp with the 8-in/8-out USB audio interface function will sure lend you a helping hand. Whether you want to monitor wet and record dry, or record wet and dry at the same time, and of course reamp, which has been a trend, you got it all in Ampero II Stomp.

Specifications

Effects Digital Audio Signal Processing: 24-bit depth, 44.1kHz sample rate

Frequency Response: 20Hz – 20kHz ± 1dB

Dynamic Range: Max. 127dB (digital to analog)

Inputs: Two 1/4″ Tip Sleeve (TS) instrument jacks with individual input mode selector One 1/8″ Stereo Auxiliary In (Aux In) jack One 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jack One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack One Standard 5 pin MIDI input jack

Outputs: Two 1/4″ Tip Ring Sleeve (TRS) balanced stereo output jacks One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack One 1/8″ stereo

headphones output jack One standard 5 pin MIDI output jack

Input Impedance: Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ FX Loop Return: 100kΩ Aux In: 10kΩ

Output Impedance: Output: 1KΩ FX Loop Send: 1KΩ Headphones: 47Ω

Input Level: Input: -17.78dBu (Nominal); 14.5dBu (Max)FX Loop Return: -17.78dBu (Nominal); 14.5dBu (Max)Aux In: -17.78dBu (Nominal); 20dBu (Max)

Output Level: Output: -11.76dBu (Nominal); 26.25dBu (Max)FX Loop Send: -17.78dBu (Nominal); 14.5dBu (Max)Headphones: -7.4dBu (Nominal); 18.3dBu (Max)

Screen: 4″ 800 x 480 Color Dynamic Display Touch Screen

USB Port: USB 2.0 Type-C port, supports USB Audio 2.0

Impulse Response/IR processing: Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs

Power Requirements: 9-18V DC Center Negative

Current Consumption: 800mA Max (9V DC)

Dimensions: 185mm(W) x 145mm(D) x 58mm(H)

Weight: 1050g

New Station for Signal Processing

8-In/8-Out Audio Interface
