Professional Mixer Sound Board Console 8 Channel Bluetooth Live Studio Audio Mixer Bluetooth USB Interface Input Power Stereo DJ Power Mixer (8 Channel)

Specifications:

Name: Mixing Console

Input: AC 110V 50Hz 18W

Output: AC 18V X 2 350mA

Material: ABS

Color: Black&Red

Size: 400 x 340 x 37 mm

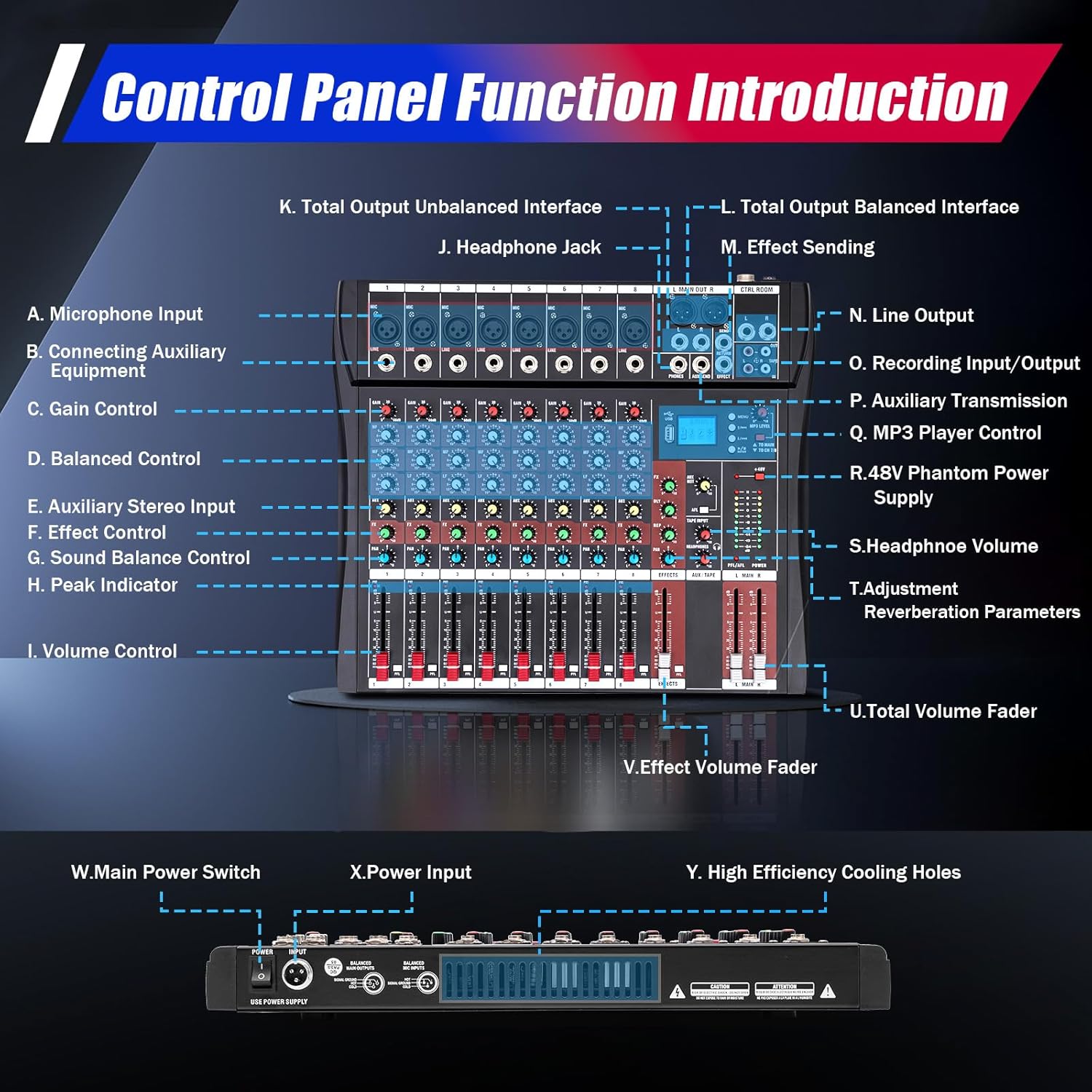

Functions:

※LR main mix

※2 Aux sends

※Recording

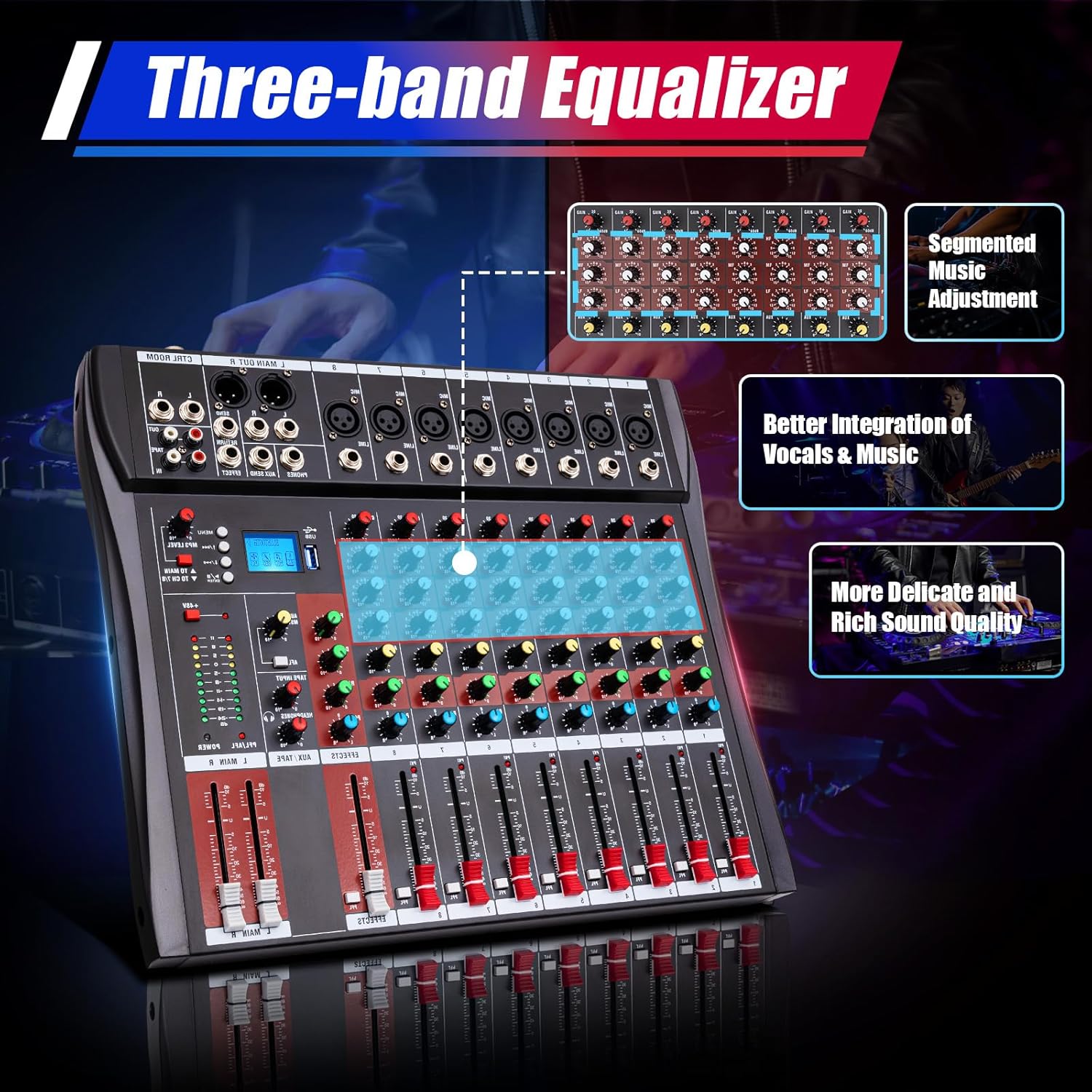

※Responsive 3 band EQ

※Individual phantom power

※Channel and master meters

※60mm dust protected faders

※2-Track monitoring and re play to LR

※Headphones and local monitor outputs

※Dedicated stereo, peak-retaining monitor meters

※Preamp +34dBu maximum input capability for mic or line

※Ultra low noise mix head amp design

※bluetooth & MP3 player/recorder with concise human-machine interactive interface

※Digital effect processor

※Metal jacks, gold-plated XLRs, sealed pots and switches

※External power adapter power supply

Technical Parameters:

※Max Input Level: +24dBu(MIC/Line); +20dbu(other line)

※Max Output Level: +26dBu(XLR); +20dBu(TRS)

※Master Meters: 10 segment -24dB to CLIP

※Channel Meters: 1 LED signal indication

※Frequency Response: 20Hz to 30KHz 0.5dB

※CMRR (MIC 1kHz): ＞75dB

※THD+N: ＜0.01%(Channel to mix out)

※Crosstalk at 1kHz: ＞85dB(Fader/Mute shutoff); ＞82dB(inter channel)

※Noise, rms 22Hz to 22KHz:

√EIN -122dBu

√Residual output noise ＜-90dBu

√L/R main mix noise ＜-82dBu

√Aux mix noise ＜-82dBu

※Mono EQ:

√LF, shelving,+/-15dB, 12KHz

√HM, peak/dip,+/-15dB, 2.5KHz

√LF, shelving,+/-15dB, 80Hz

※Mono channel:

√XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14dBu

√TRS balanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu

√XLR, phantom +48V

※2-track return: RCA, unbalanced, 4K ohm, -2dBu

※2-track send: RCA, unbalanced, ＜75 ohm, -2dBu

※L/R output: XLR unbalanced, pin 2 hot, ＜75 ohm, +4dBu, Max.+22dBu

※FX/AUX output: TRS unbalance
