Rockville RockMix 5 USB Computer Recording Interface Mixer w/Bluetooth, Echo, EQ

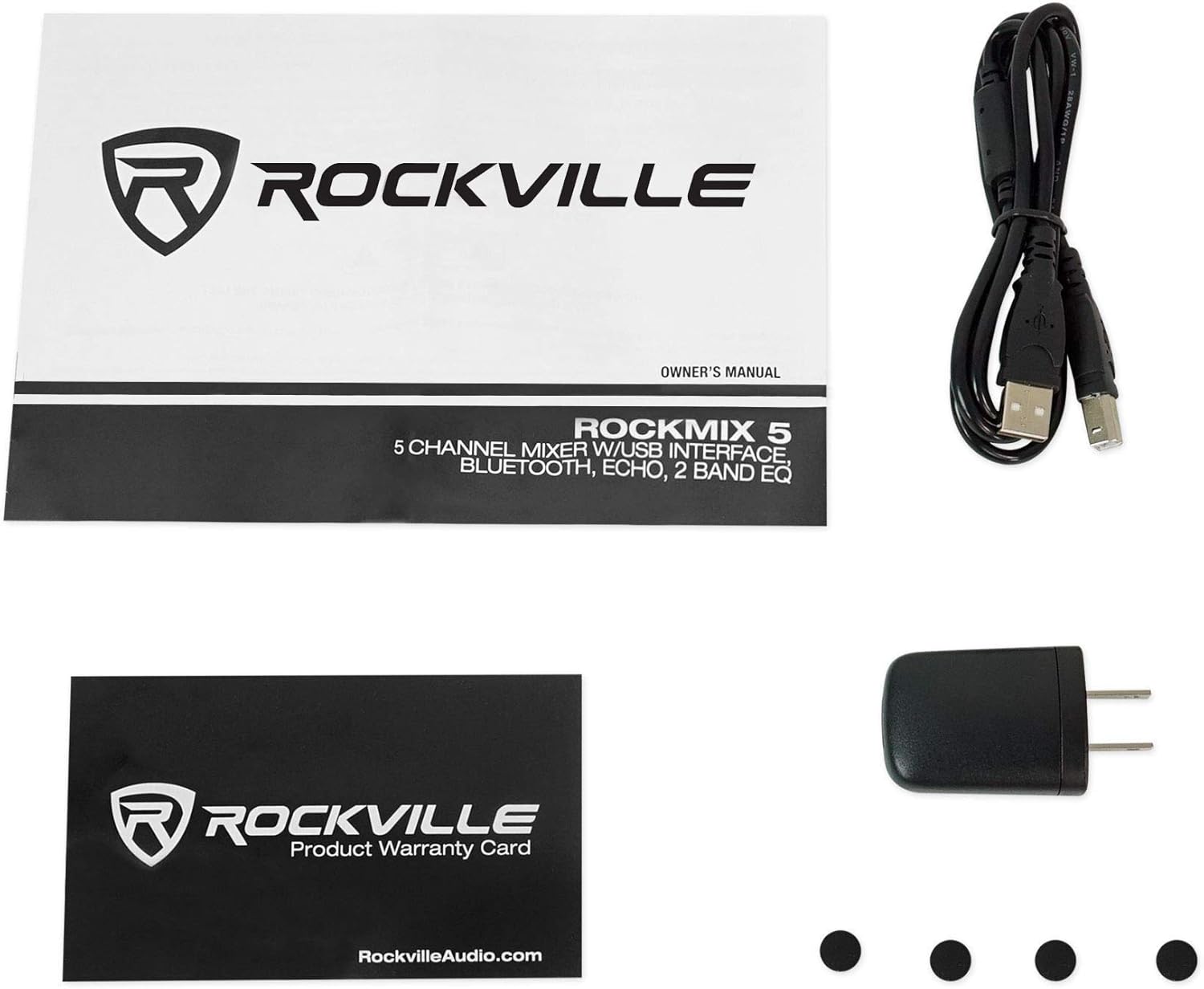

Includes:

• Mixer
• Power Adapter
• User Manual
• USB interface cable

Features:

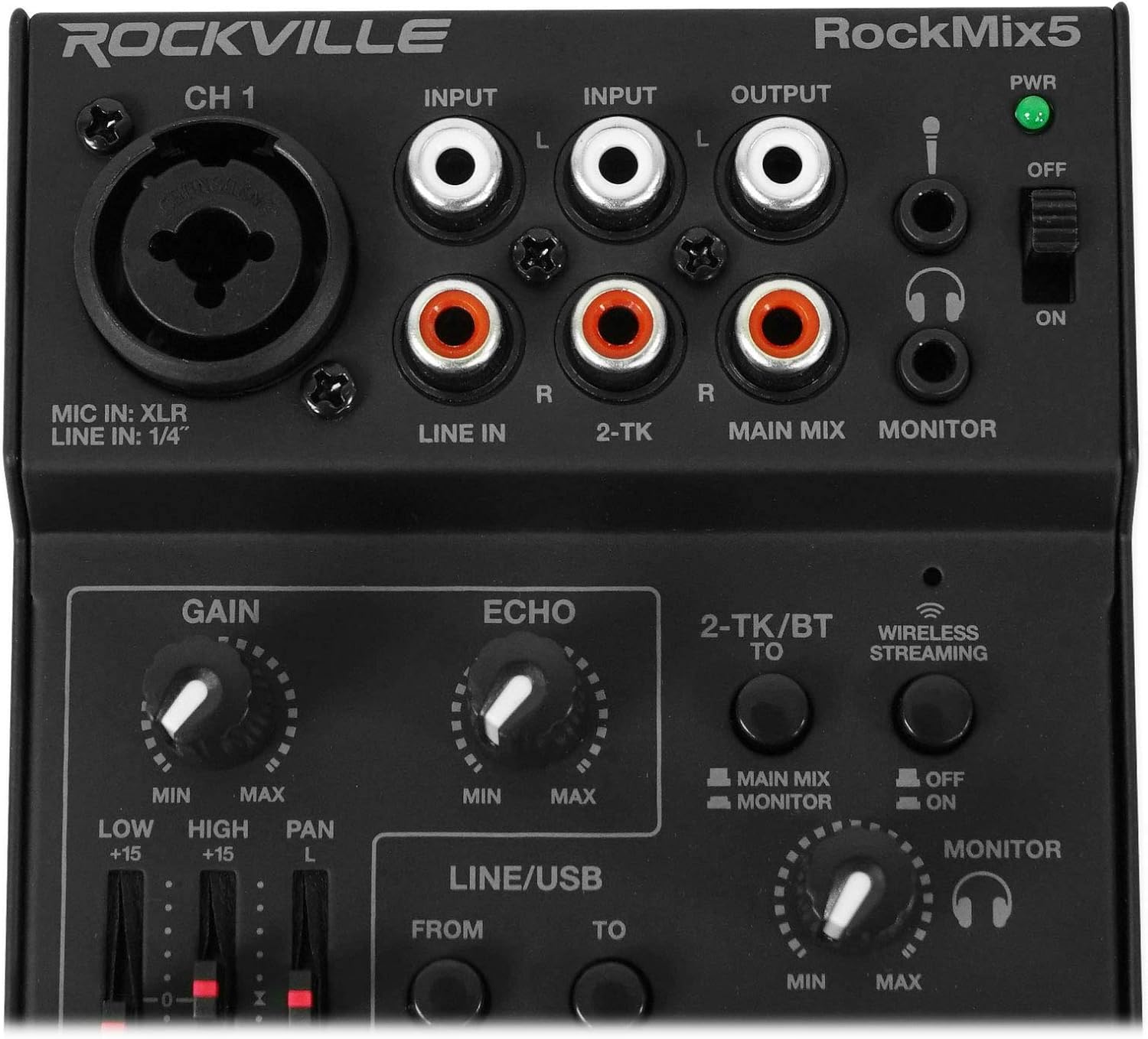

• Rockville RockMix 5 Channel Mixer w/USB Interface, Bluetooth, Echo, 2 Band EQ
• (1) Combo jack (XLR and ¼”) Mic/Line input with volume control,2-band EQ, and Pan as well as 18V phantom power
• (1) Stereo channel with RCA inputs and level control assignable to either headphone or main output
• (1) Stereo channel with RCA input assignable to either headphone or main output
• RCA main mix output to plug into your speakers with monitor volume knob
• Additional 3.5mm mic input
• 3.5mm headphone output
• Echo effect with independent control
• Main mix master volume knob
• Built in Bluetooth wireless audio streaming
• Built in USB interface will send the master mix to your favorite DAW

• Interface will be identified and addressed as an external sound card in your DAW
• Peak LED indicator detects clipping on channel one
• Main mix has left and right clip indicators
• Power on LED indicator
• Our design is Simple, flexible, and highly-efficient
• Super linear mic pre-amp with low noise (this uses a top of the line mic pre normally found in very expensive mixers)
• This mixer is built out of solid steel metal and when you pick it up you immediately can feel the weight and how solid it is
• All knobs and potentiometers are super sturdy and linear
• 18V phantom power for condenser microphones

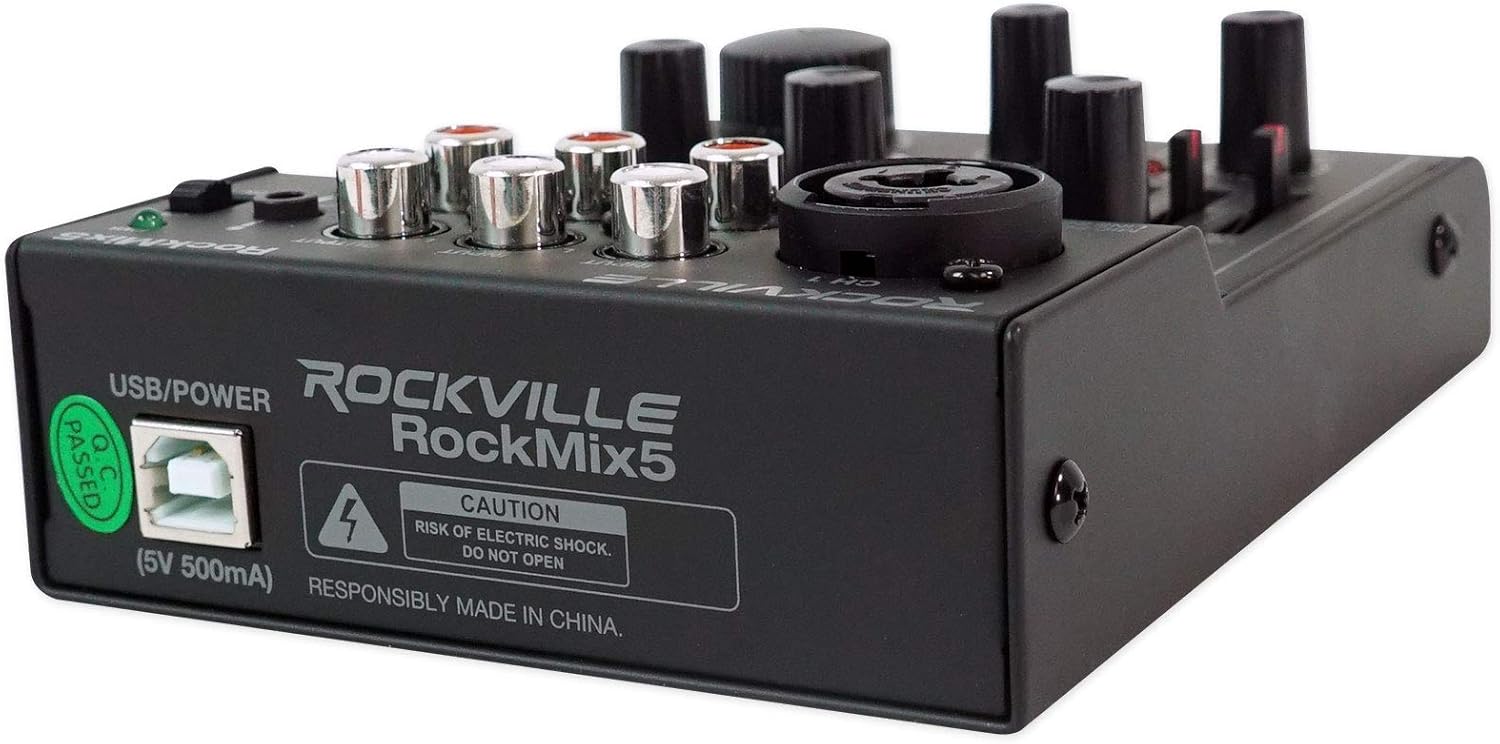

• BUS powered allows you to power the mixer by plugging it into the USB of your computer or laptop
• Mixer includes a power adapter so you can power the mixer through the USB
• You can power the mixer through any power bank that you normally use to power your phone (this mixer is highly efficient and only requires 5 volts of power)
• British EQ circuitry is designed to emulate the classic EQ from the legendary mixers that came out in the 1950’s, 60’s and 70’s
• Dimensions (inches): 5.31" x 3.94" x 1.57"

Specifications:

• Mic: 1mV/1.7 KΩ(Gain max)
• Line, channel 1: 3mV/10KΩ(Gain max)
• Line, channel 2/3: 300mV/22KΩ
• Line channel 4/5: 300mV/22KΩ
• Output level: 5.8V max (MAIN; MONITOR; TAPE)
• Frequency range: 20 -25000 Hz
• THD: ≤0.05%
• S/N ratio: 81dB
• Equalizer
• Bass range: ±15dB/80Hz
• High range: ±15dB/12kHz
• Headphone impedance: ≥16Ω
• USB interface: USB 2.0 full speed and earlier (also 1.1 compatible)
• 16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max,
• Bluetooth: Compliant with Bluetooth Specification V3.0 + EDR
• Phantom power for XLR jack: 18V
• Power supply via USB port: (5V/500mA) of the computer or via power supply unit provided and connected to AC100-240V 50/60Hz
• Dimensions: 101*45*135 mm
• Weight: 0.95 lbs.
• Suitable operating system for data transfer via USB interface:
• Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher.

Rockville RockMix 5 USB Computer Recording Interface Mixer w/Bluetooth, Echo, EQ
