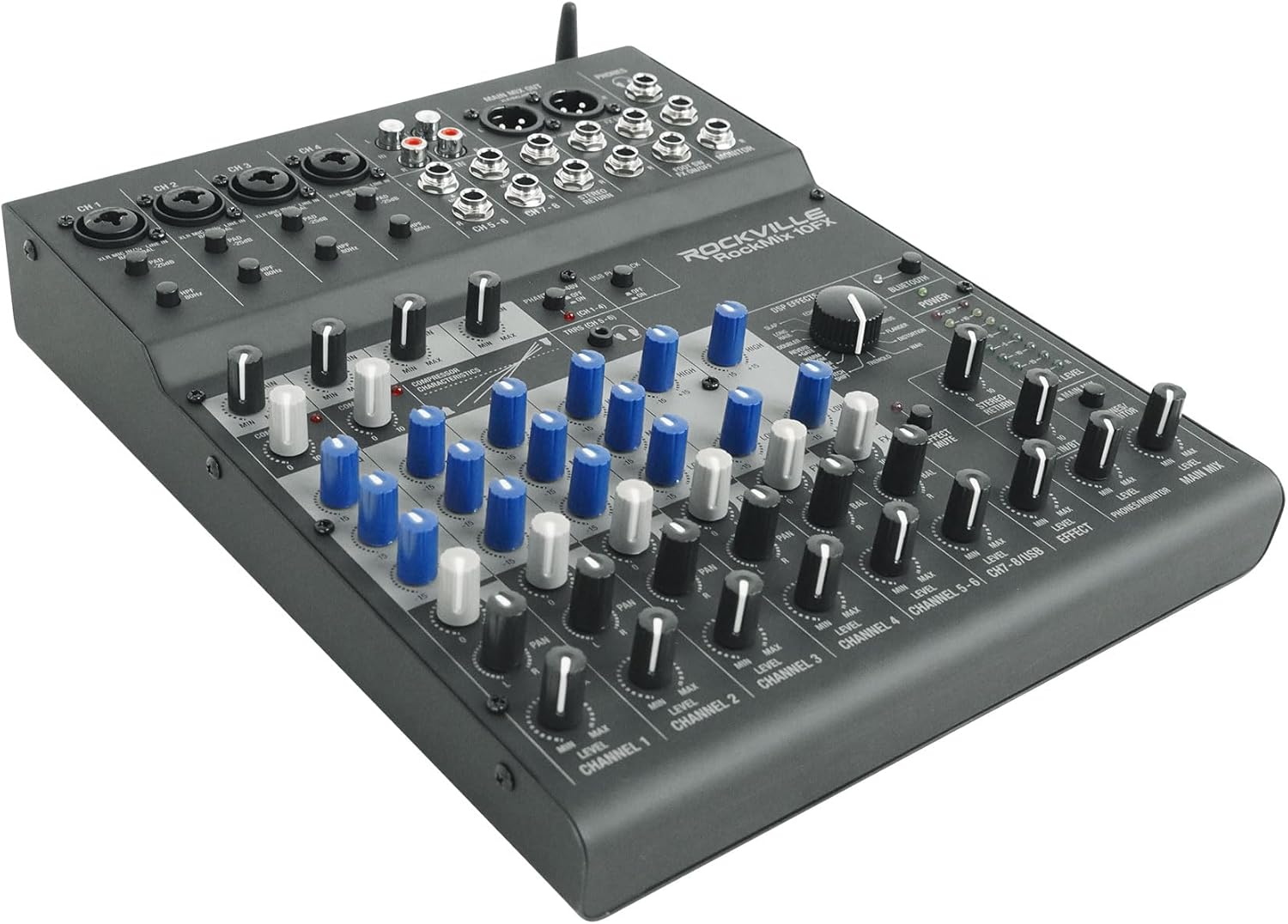

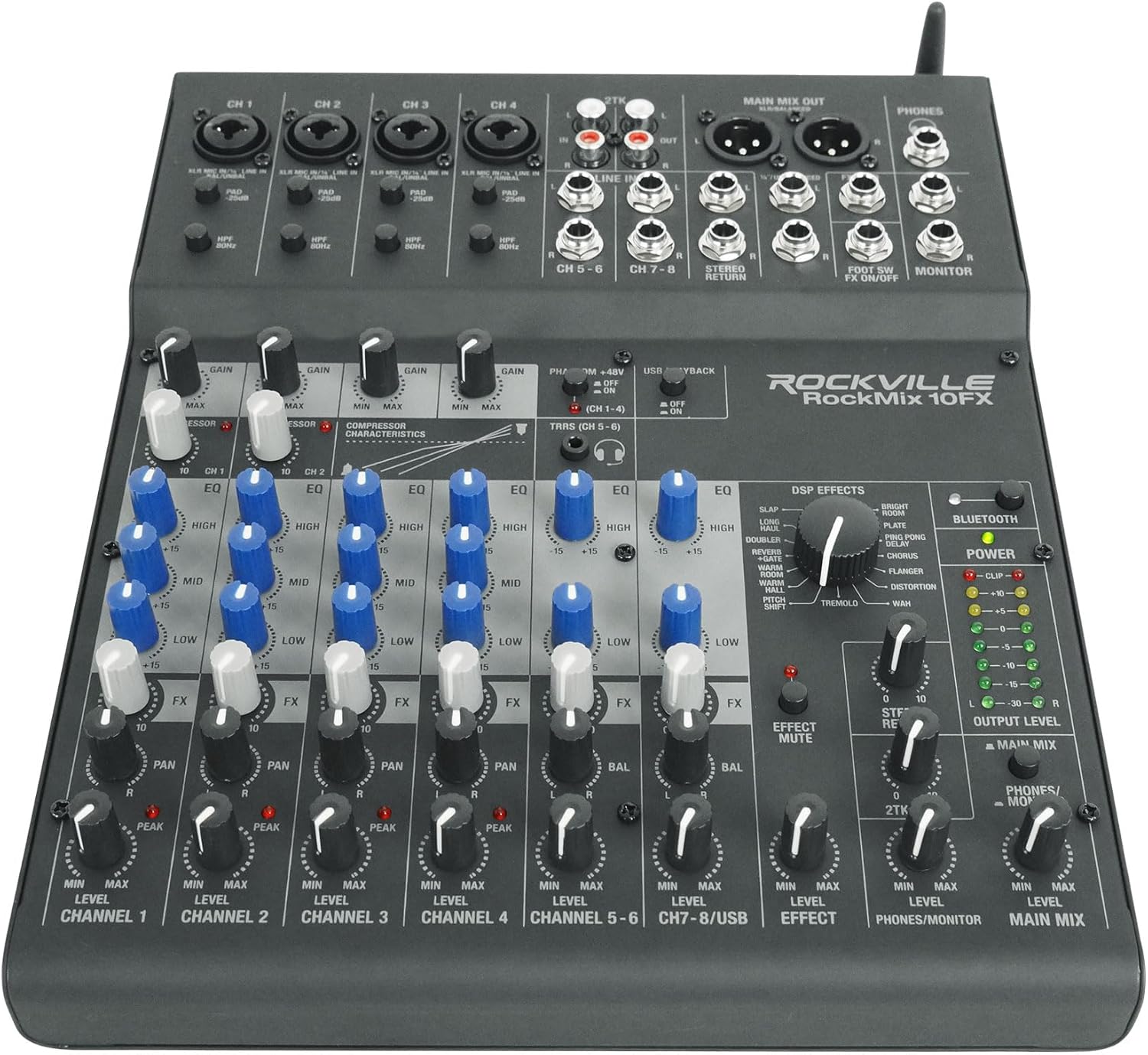

Rockville ROCKMIX 10FX USB Computer Recording Interface Bluetooth Effects Mixer

What's In The Box:

• Mixer
• Power Adapter
• User Manual
• USB Interface Cable
• Bluetooth Antenna

Features:

• Rockville RockMix 10FX 10 Channel Mixer with USB Recording Interface, Effects and 2-Way Bluetooth
• Channels 1 and 2 have XLR / ¼" Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX and compressor
• Channels 3 and 4 have XLR / ¼" Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX
• Channels 5 - 8 have ¼" line input jacks with volume control and 2 band EQ, FX and can accept balanced and unbalanced signals and 6 have ¼" inputs
• Channels 9-10: TAPE Input with RCA inputs and level control assignable to either headphone or main output
• USB audio interface assignable to channels 7-8 with 2 band EQ, FX, balance controls
• RCA main mix output with volume control (to plug into your monitors)
• XLR Main mix balanced output
• ¼" Main mixed unbalanced output
• ¼" Headset and Monitor output
• 24 Bit FX engine with 16 DSP Effects (Each effect sounds great)
• Vocal Canceler feature for Karaoke applications
• Effect mute button (controllable with an optional footswitch)
• Built in Bluetooth 5.0 wireless audio streaming
• Main mix master volume knob
• Built in USB interface will send the Summed Stereo Mix to your favorite DAW
• Interface will be identified and addressed as an external sound card in your DAW
• Peak LED indicator detects clipping on channels 1-4
• Main mix has left and right clip indicators
• Power on LED indicator
• Super linear mic preamp with low noise (this uses a top of the line mic pre normally found in very expensive mixers)
• This mixer is built out of solid steel metal and when you pick it up you immediately can feel the weight and how solid it is
• All knobs and potentiometers are super sturdy and linear
• 48V phantom power for condenser microphones
• Stereo return knob
• Rubber feet
• Mixer includes a power adapter DC5V/1A
• British EQ circuitry is designed to emulate the classic EQ from the legendary mixers that came out in the 1950's, 60's and 70's
• Dimensions: (L x W x H) 12.13" x 9.84" x 2.44"

Sensitivity/ Impedance:

• Mic(1-4): 3mV/5.3KO (Gain max)
• Line, channel 1-4 (Balanced): 15mV/24KO (Gain max)
• Line, channel 1-4 (Unbalanced): 15mV/12KO (Gain max)
• Line, channel 5-8/ STEREO/RETURN (Balanced): 300mV/44KO
• Line, channel 5-8/ STEREO/RETURN (Unbalanced): 300mV/22KO
• TAPE Channel: 300mV/20KO
• Output Level: 5.8V max (MAIN; MONITOR; TAPE)
• Frequency Range: 20 -25000 Hz
• THD: =0.05%
• S/N Ratio: 88dB
• Equalizer
• Bass Range: ±15dB/80Hz
• Mid Range: ±15dB/2.5KHz
• High Range: ±15dB/12kHz
• Headphone Impedance: =16O
• USB Interface: USB 2.0 full speed and earlier (also 1.1 compatible)
• 16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max,
• Bluetooth: Compliant with Bluetooth Specification V5.0 + EDR
• Phantom Power for Combo Jack: 48V
• Power supply via power supply unit provided and connected to AC100-240V 50/60Hz
• Dimensions: 385 (L) *295 W) *115 (H) mm
• Weight: 4.85LBS(2.2KG)
• Suitable operating system for data transfer via USB interface:
• Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher.

Rockville ROCKMIX 10FX USB Computer Recording Interface Bluetooth Effects Mixer
