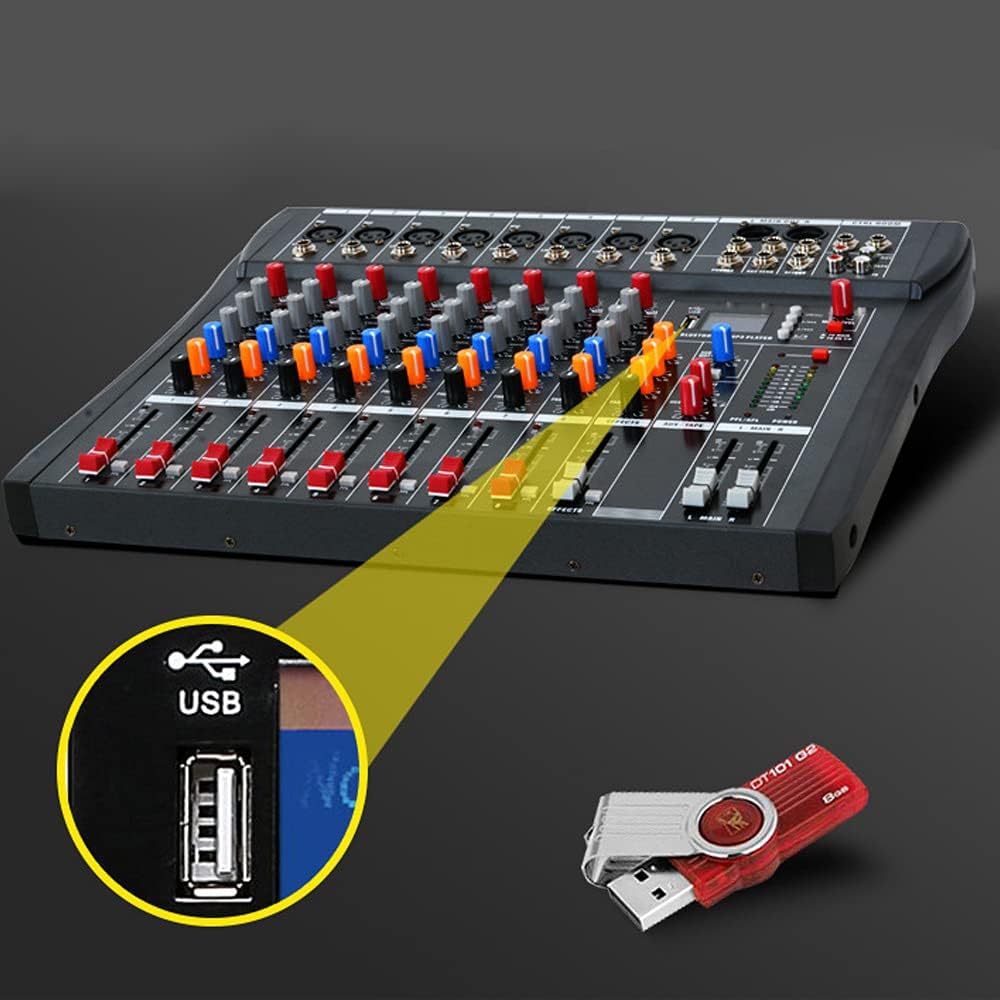

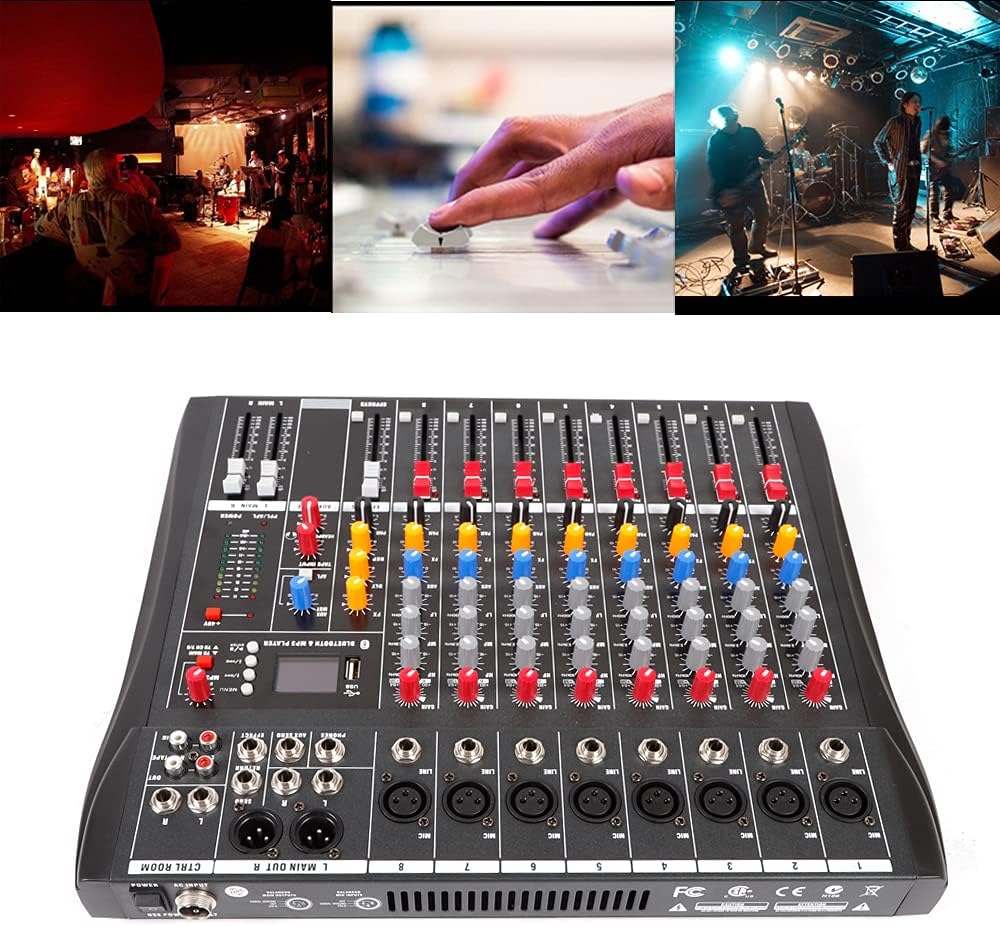

8 Channel Professional Mixer Sound Board Console Interface Digital USB MP3 Phantom Power Stereo DJ Studio FX Steel Chassis, USB Bluetooth Audio Mixer

Specifications:
Name: Mixing Console
Input: AC 110V 50Hz 18W
Output: AC 18V X 2 350mA
Material: ABS
Color: Black&Red
Size: 400 x 340 x 37 mm

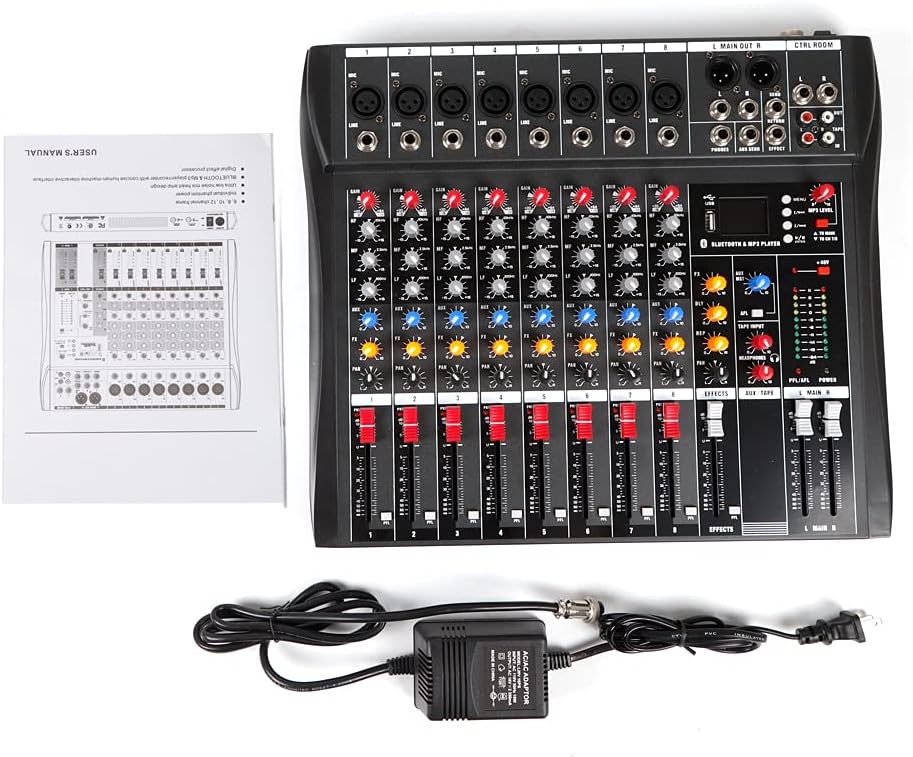

Package Included:
1 x Mixing Console
1 x Charger (US Plug)
1 x User Manual

Functions:
🎤LR main mix
🎤2 Aux sends
🎤Recording
🎤Responsive 3 band EQ
🎤Individual phantom power
🎤Channel and master meters
🎤60mm dust protected faders
🎤2-Track monitoring and re play to LR
🎤Headphones and local monitor outputs
🎤Dedicated stereo, peak-retaining monitor meters
🎤Electronically balanced XLR outputs with +26dBu drive capability
🎤Preamp +34dBu maximum input capability for mic or line
🎤Ultra low noise mix head amp design

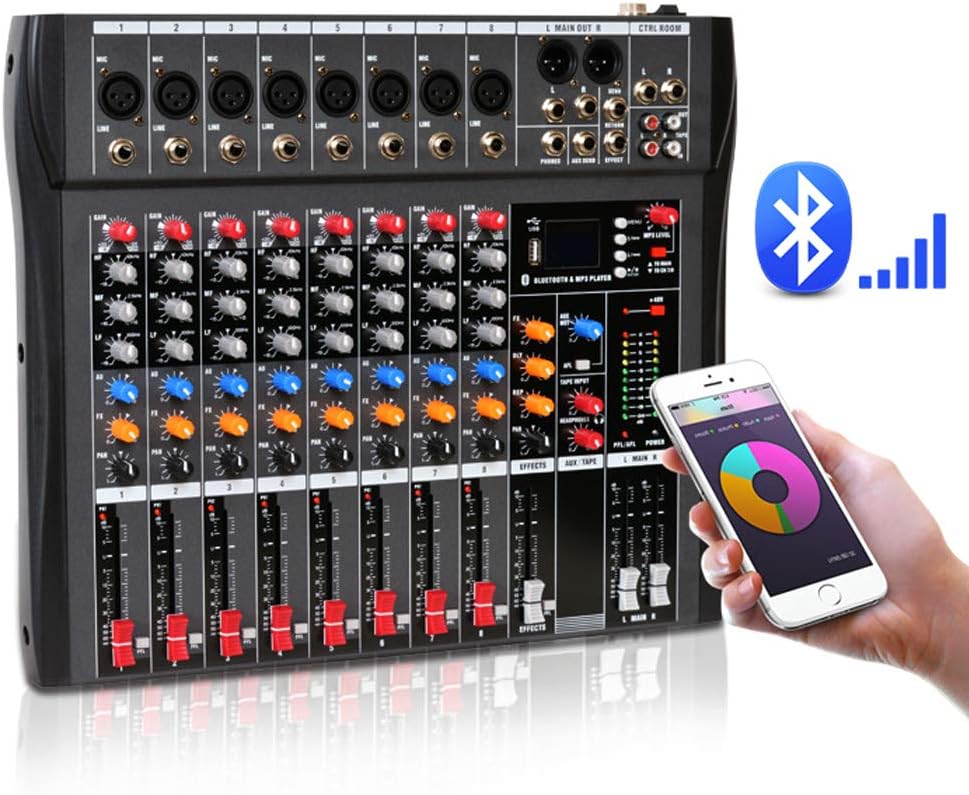

🎤bluetooth & MP3 player/recorder with concise human-machine interactive interface
🎤Digital effect processor
🎤Metal jacks, gold-plated XLRs, sealed pots and switches
🎤External power adapter power supply

Technical Parameters:
🎤Max Input Level: +24dBu(MIC/Line); +20dbu(other line)
🎤Max Output Level: +26dBu(XLR); +20dBu(TRS)
🎤Master Meters: 10 segment -24dB to CLIP
🎤Channel Meters: 1 LED signal indication
🎤Frequency Response: 20Hz to 30KHz 0.5dB
🎤CMRR (MIC 1kHz): ＞75dB
🎤THD+N: ＜0.01%(Channel to mix out)
🎤Crosstalk at 1kHz: ＞85dB(Fader/Mute shutoff); ＞82dB(inter channel)
🎤Noise, rms 22Hz to 22KHz:
√EIN -122dBu
√Residual output noise ＜-90dBu
√L/R main mix noise ＜-82dBu
√Aux mix noise ＜-82dBu
🎤Mono EQ:
√LF, shelving,+/-15dB, 12KHz
√HM, peak/dip,+/-15dB, 2.5KHz
√LF, shelving,+/-15dB, 80Hz
🎤Mono channel:
√XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14dBu
√TRS balanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu
√XLR, phantom +48V
🎤2-track return: RCA, unbalanced, 4K ohm, -2dBu
🎤2-track send: RCA, unbalanced, ＜75 ohm, -2dBu
