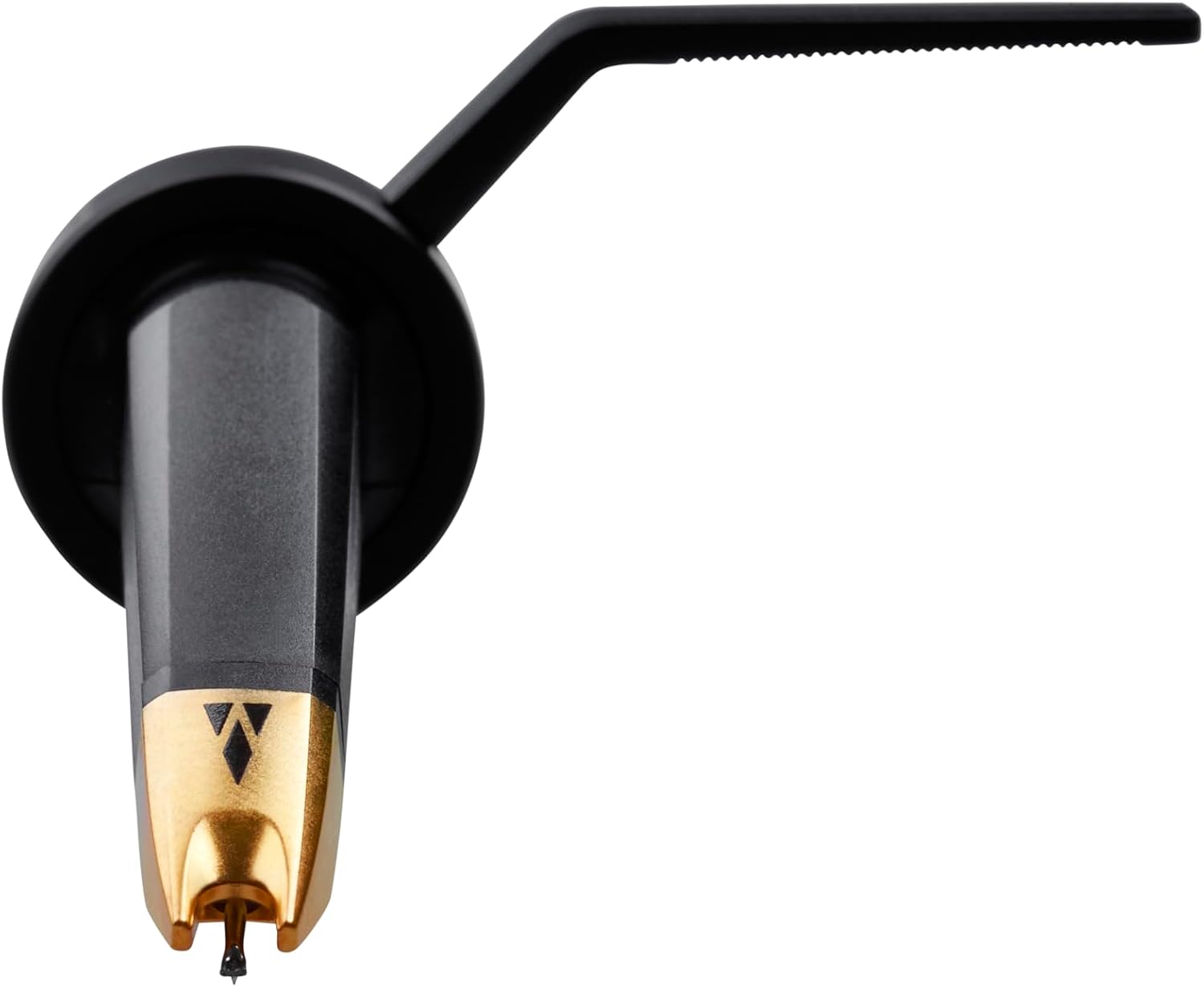

Ortofon Concorde Elite Turntable Cartridge and Stylus
Aluminum-Magnesium Cantilever
Max 4.0 G Tracking Fce
Rubber Suspension
Diamond Tip
-
Detail
The Concorde ELITE is a premium Moving Magnet cartridge, based on the legacy of the Ortofon Concorde MkII Series. Owing to the number of components' upgrades, the ELITE achieves a new level of sound quality, not previously found in the DJ-categorized cartridges.
Accuracy levelMusically, the Concorde ELITE exceeds the scale of the Concorde Series!
Nude Elliptical diamondEncased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance. The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality.
High output, great performanceIn the armature, you’ll find a specially developed Coil System transmitting the diamond’s movements to deliver an optimized output. The unique Coil System provides the ELITE with a powerful, full-bodied sound of high quality and high output.
Superior trackingTo ensure superior tracking performance, a new Rubber Suspension has been developed. The new rubber compound formula has been developed uniquely for the Concorde ELITE to attain the desired characteristics for an extraordinary performance of the cartridge. The richer, fuller sound conveys the music in the most lifelike manner while paying close attention to damping of excess brightness.
Exclusively developedThe Cantilever and Coil System: The cantilever needs to accommodate the perfect compromise between lightweight and high strength, which requires great ingenuity in the design, as well as the choice of materials. The properties of the Rigid 750 µm Aluminum-Magnesium cantilever, exclusively developed for the Concorde ELITE, ensure that the stylus picks up the groove vibrations with a stable and accurate trace performance and provides the ideal interface between the stylus and armature.
Channel balance at 1 kHz1 dBOutput voltage at 1 kHz,8,5 mVChannel seperation at 1 kHz25 dBTracking ability at 315Hz100 μmCompliance, dynamic, lateral13 μm/mNStylus tip radiusr/R 8/18 μmTracking force, recommended3.0 gTracking force range2.0-4.0 gTracking angle 20°Internal impedance,DC resistance: 1.2 kOhmRecommended load impedance150-400 pFRecommended load resistance47 kOhmInternal inductance800 mHConcorde MKII Elite: A limitless Experience
Bringing together the worlds of music lovers.

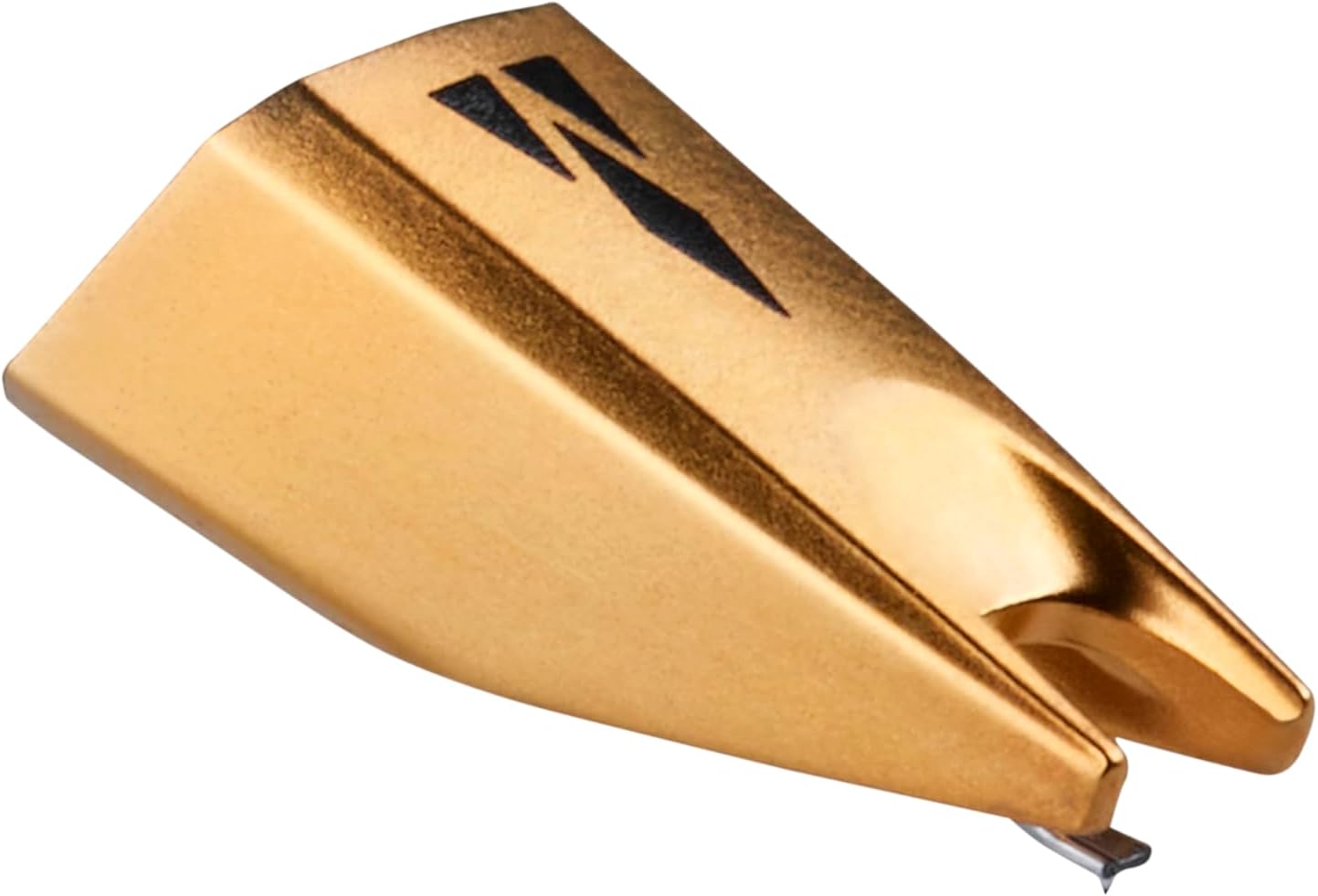

Stylus
Output
Rubber suspension
Cantilever
-
