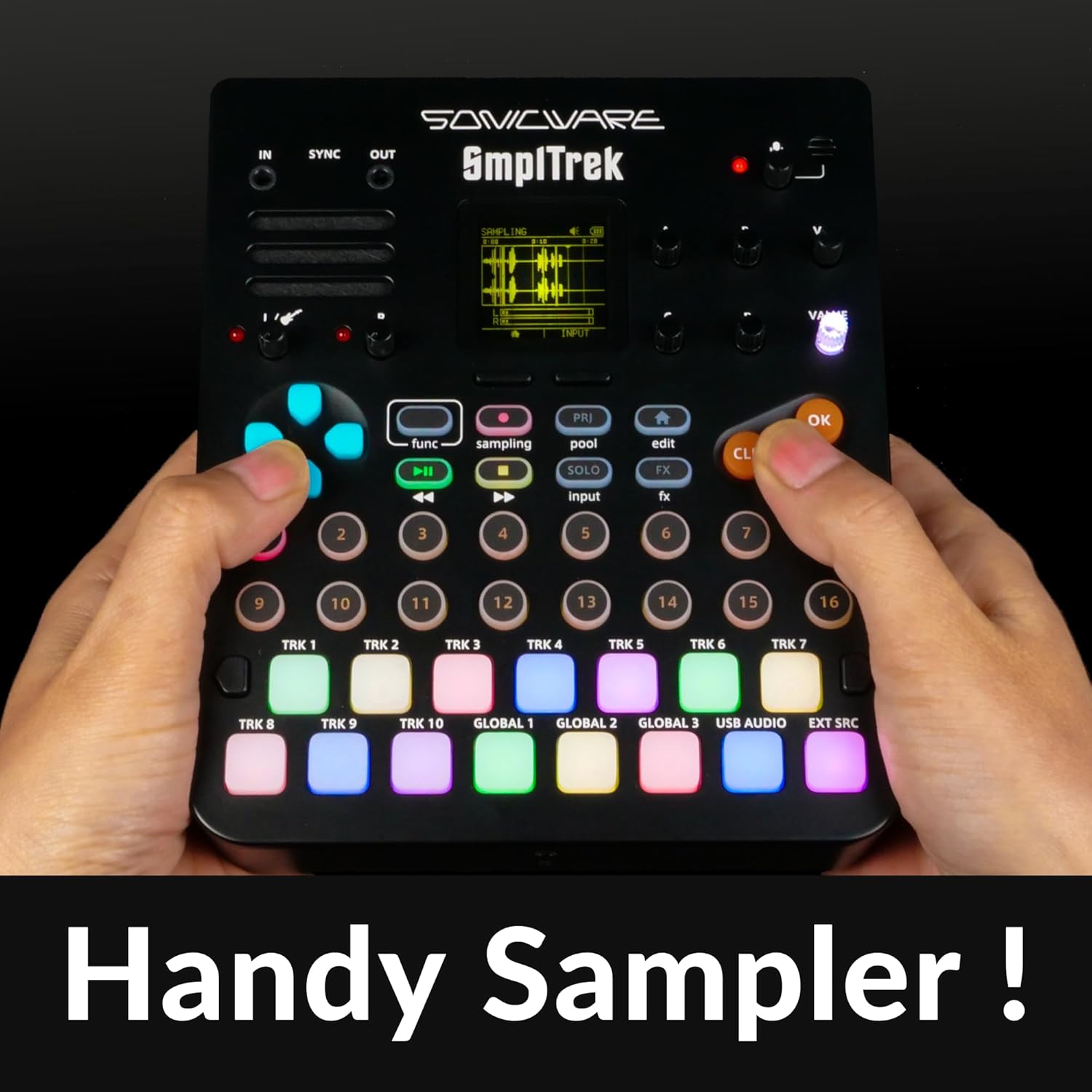

Sonicware SmplTrek [Portable Production Sampler] Compact, lightweight and battery powered Drum Machine & Sampler with Built-in Mic & Speaker

You can easily sample any sounds with the built-in microphone, your microphone or electric guitar connected to the input, or even a USB-connected smartphone or PC/Mac.

You can even sample applying an insert effect. For example, your electric guitar can be added to Distortion or your vocal to Compressor.

Sampled sounds can be quickly assigned to pads with auto-slicing, and can also be edited manually in detail by viewing the waveform display.

Sampled sounds can also be easily matched to the tempo and key of your song.You can also resample a sequenced phrase of sampled sounds including applied effects.

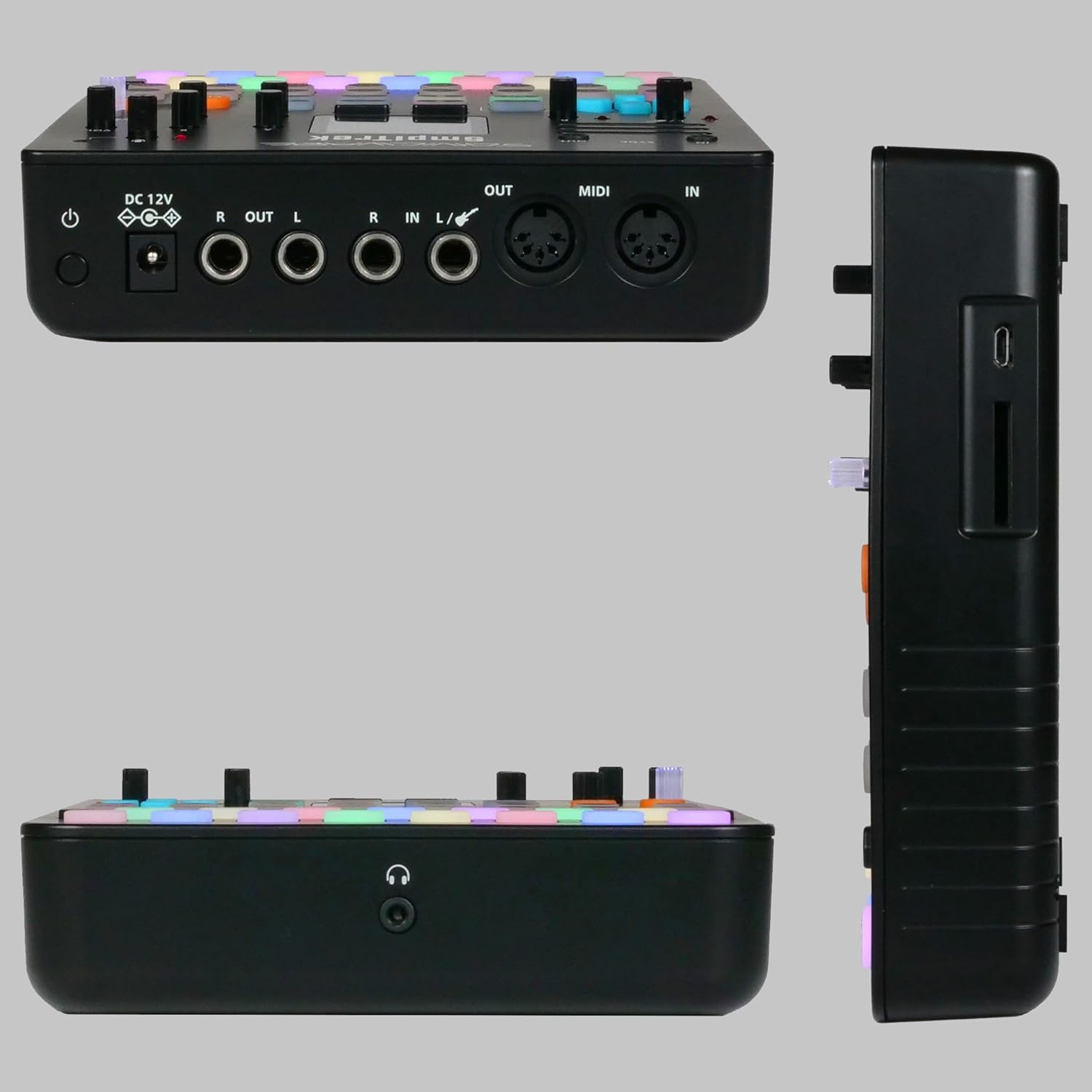

The SmplTrek can connect to a wide range of audio sources such as, dynamic microphones, electric guitars/bass, synthesizers, and even USB audio sources from PC/MACs or smartphones.

The SmplTrek can output audio via two analog outputs, or digitally via USB for live streaming and direct DAW recording.

It can also synchronize its tempo with other devices using MIDI or audio sync.

Pads15 velocity-sensitive pads with RGB LEDsControllers Control knob x 5, Directional pad with 2 button controlsDisplay1.5 inch OLED displayBuilt-in MicMono x 1 (Omni-directional, 94dBSPL)Built-in SpeakerMono x 1 (1.5W 4Ω)Input LGuitar (Switchable10kΩ and 1MΩ impedance) / Dynamic Mic,[LINE Gain] PAD: -20dB[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB[MIC Gain] LOW: 0dB, NORMAL: +10dBInput RDynamic Mic,[LINE Gain] PAD: -20dB[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dBOutputsStereo Line outputs (Max +6.5dBV) *The above jacks are all balanced 1/4" TRS Jack ConnectorsPhonesStereo 3.5mm mini jack typeUSB portmicro USB Type-B[USB Audio] USB 2.0 Full Speed, 48kHz-16bit, Input: 2 channels, Output: 2 channels, [USB MIDI][Mass Storage Class] USB2.0 High Speed *For iPhone, Apple Lightning to USB Camera Adapter required separatelyMIDI connectorsMIDI IN connector (5-Pin DIN type), MIDI OUT connector (5-Pin DIN type)Sync ConnectorsAUDIO SYNC IN jack (mono 3.5mm mini jack type), AUDIO SYNC OUT jack (mono 3.5mm mini jack type)SD card slotStandard, SDHC cards up to 32 GB (micro SD cards are supported.) *SDXC cards are not supported.Screw hole on the bottom side 1/4-20UNCPower SupplyDC12V output AC adapter (500mA, Inner Diameter: 2.5mm, Outer Diameter: 5.5mm, Polarity: Center +), Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6 (Alkaline dry batteries life: approx. 4 hours) *Batteries sold separatelyAccessories32GB SDHC card incl. 1,000+ samples from Black Octopus, AC Adaptor*USB cable and the other connection cables sold separately

Boost your musical journey: from creating to jamming!

　

　

　

Compact, lightweight, and battery powered, you can create music anywhere, anytime!

　

Specifications
