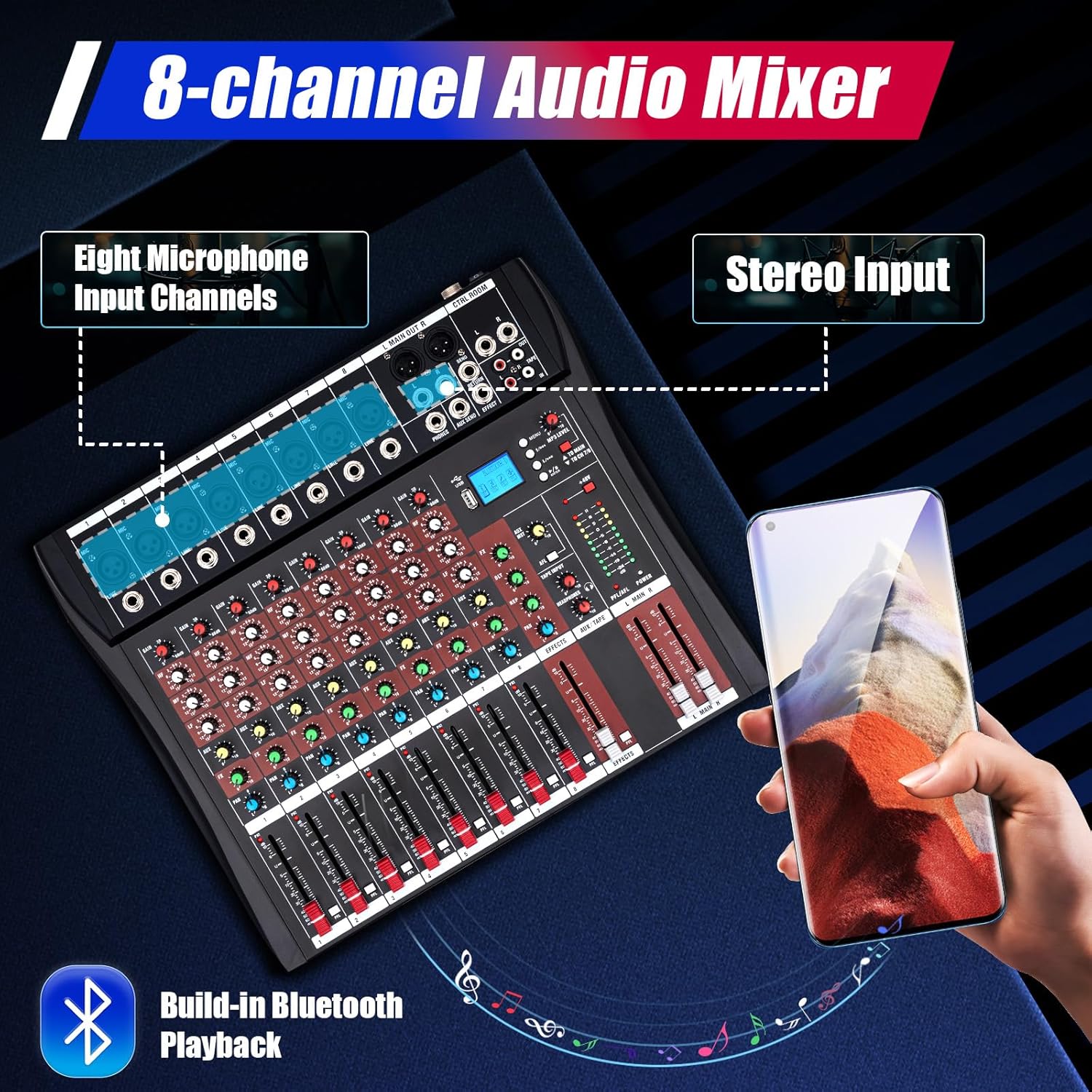

Professional 8-Channel Audio Mixer, Audio Interface, Bluetooth Studio Audio Mixer Live Sound Mixing Console with USB, Music Recording Equipment with 48V Phantom Power RCA Input XLR

Specification

Color: Black

Material: Metal, Damping

Display: LED

Process: Coating

Number of Channels: 8

Plug: US Standard

Max Input Level: +24dBu(MIC/Line)

Max Output Level: +26dBu(XLR)

Master Meters: 10 Segment -24dB to CLIP

Frequency Response: 20Hz to 30KHz 0.5dB

Max Input Power: 15W

THD+N: ＜0.01%(Channel Input to Mix Output)

Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel)

Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu

2-track Return: RCA, Unbalanced, 4K ohm, -2dBu

2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu

L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu

FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu

Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended

Mono Channel:

XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu

TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu

XLR, Phantom +48V

Adaptor:

Model: LWV, 16PS

Input: AC 110V 50Hz, 18W

Output: AC 18Vx2, 350mA

Slide Length: 7cm/2.76inch

Gross Weight: 4.65kg/10.25lbs

Net Weight: 4kg/8.82lbs

Package Size: 44.5*42*11cm/17.52*16.54*4.33inch

Product Size: 40*34*5cm/15.75*13.39*1.97inch

Package Included

1*Mixer

1*Power Adapter

1*English Manual

Notes

1.Please read the user manual carefully before use and pay special attention to the safety precautions included.

2.Please note that the product needs to be used with an amplifier. The mixing console itself will have noise <-60BD.

3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
