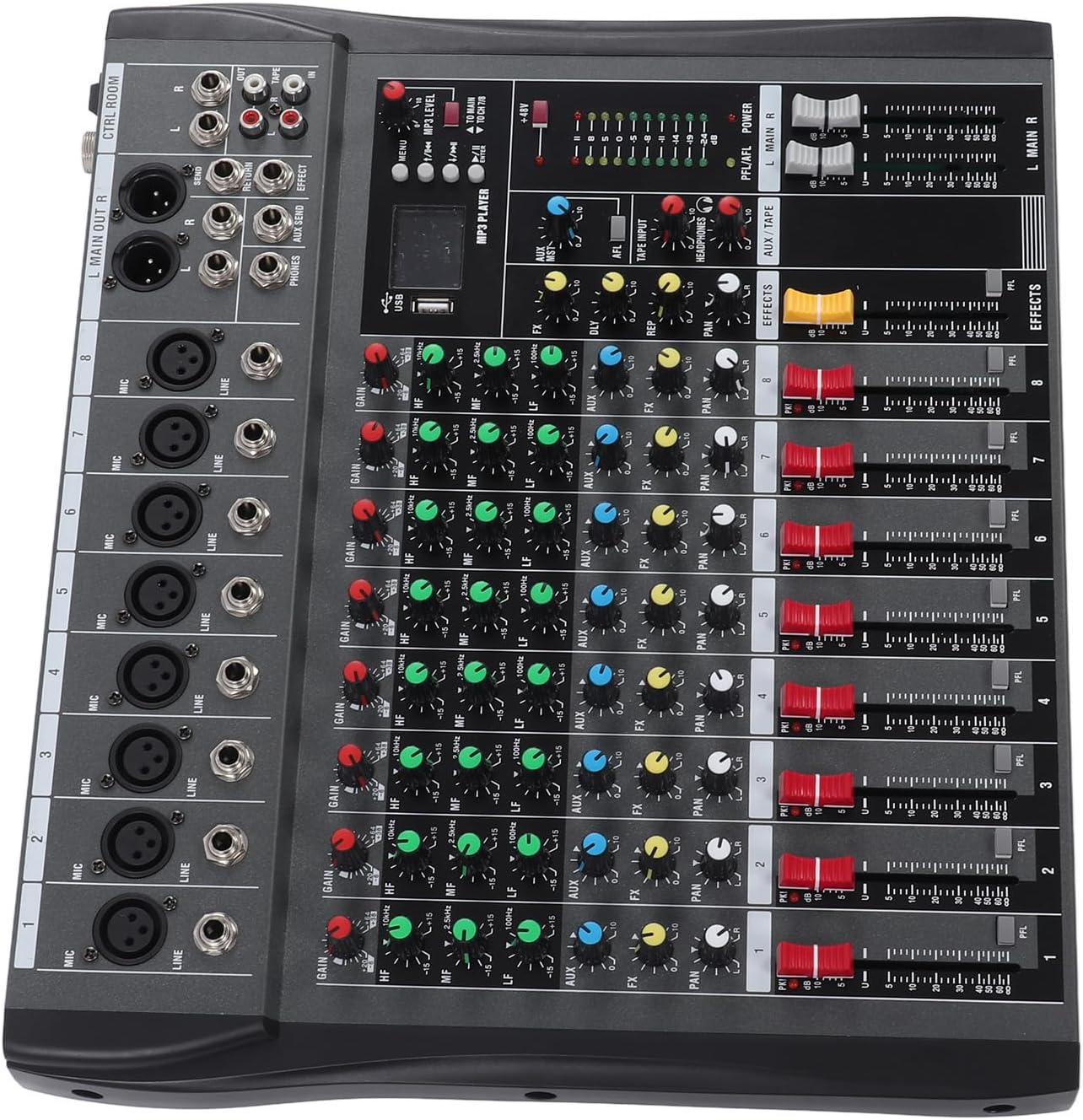

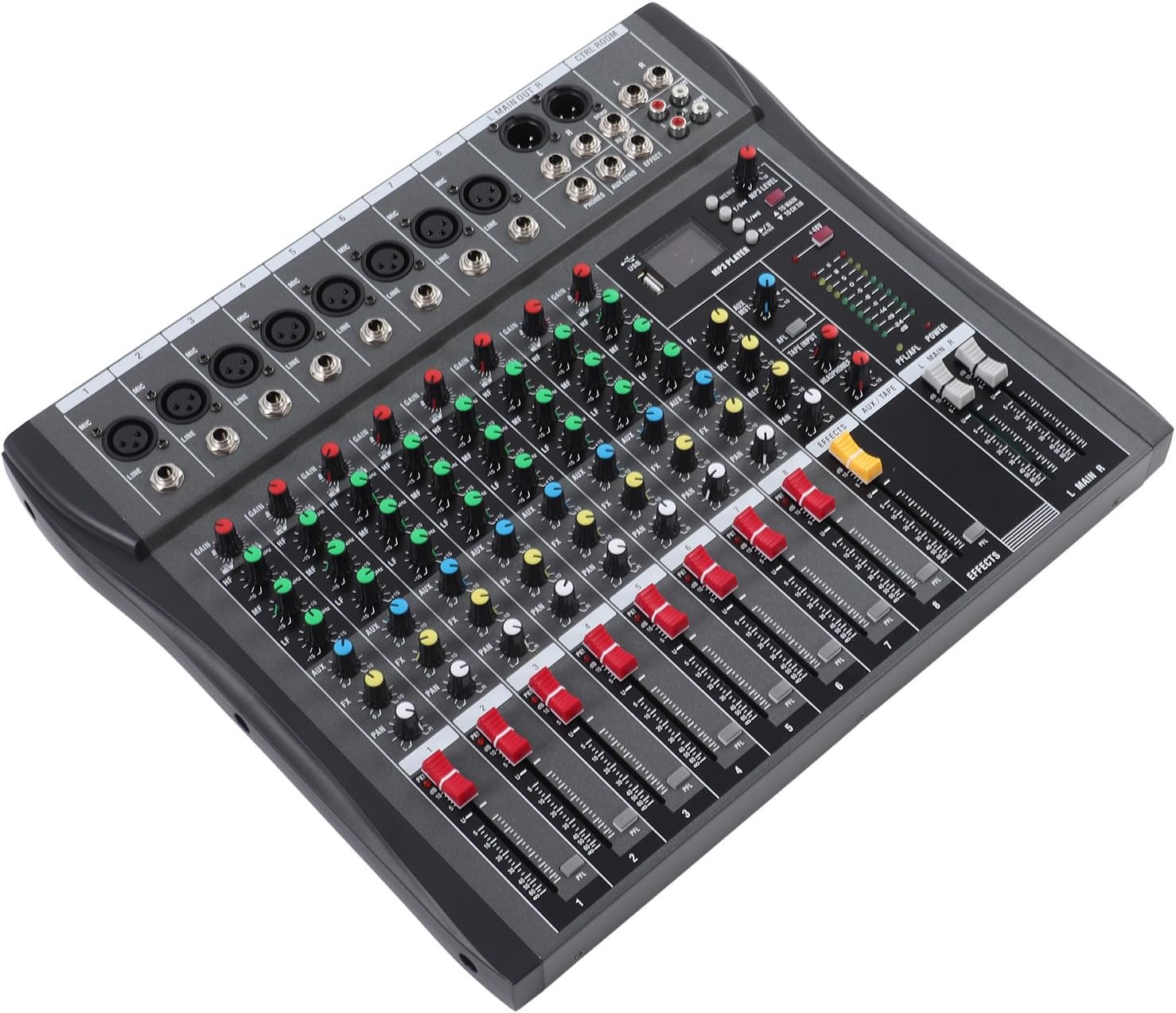

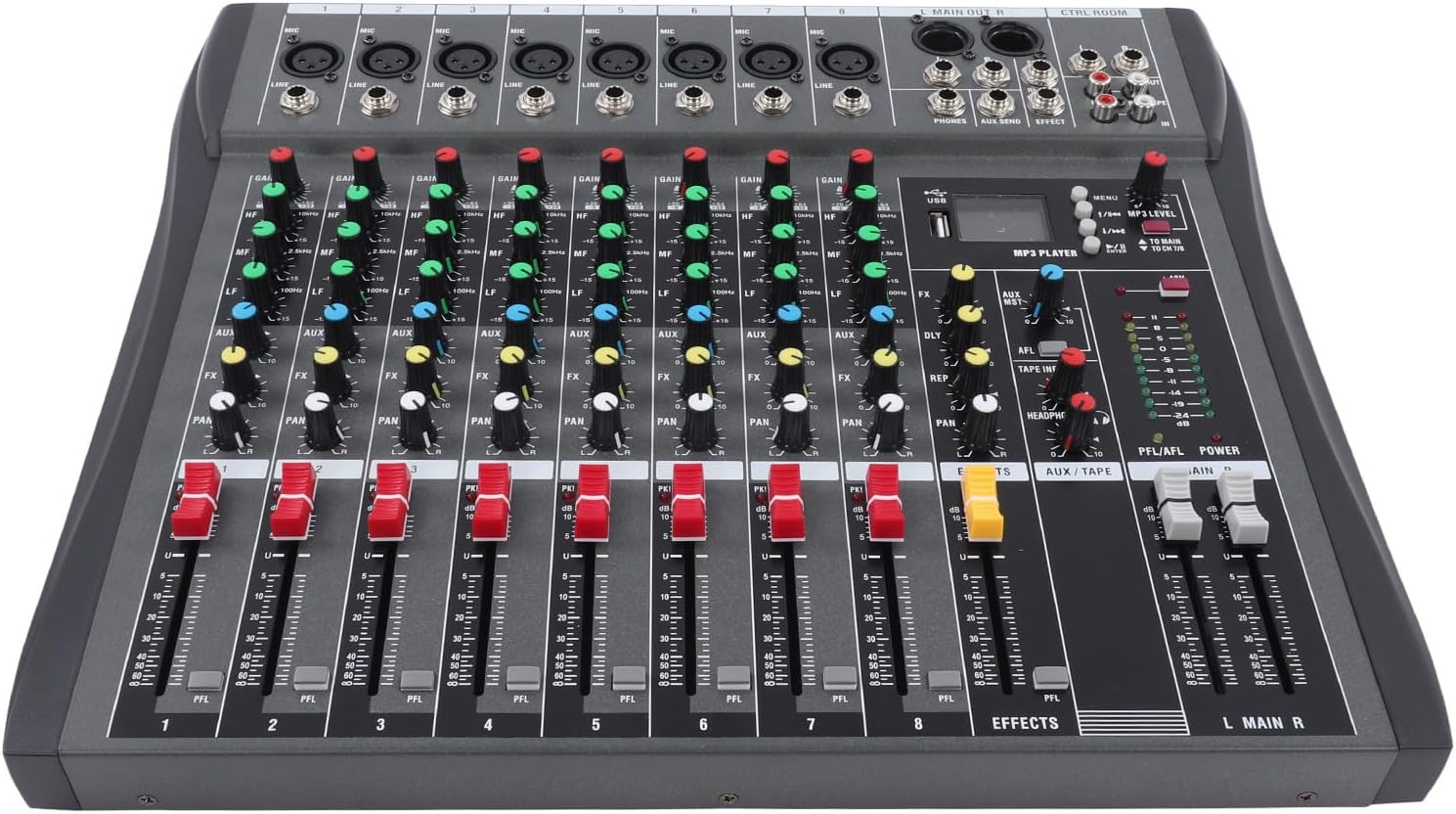

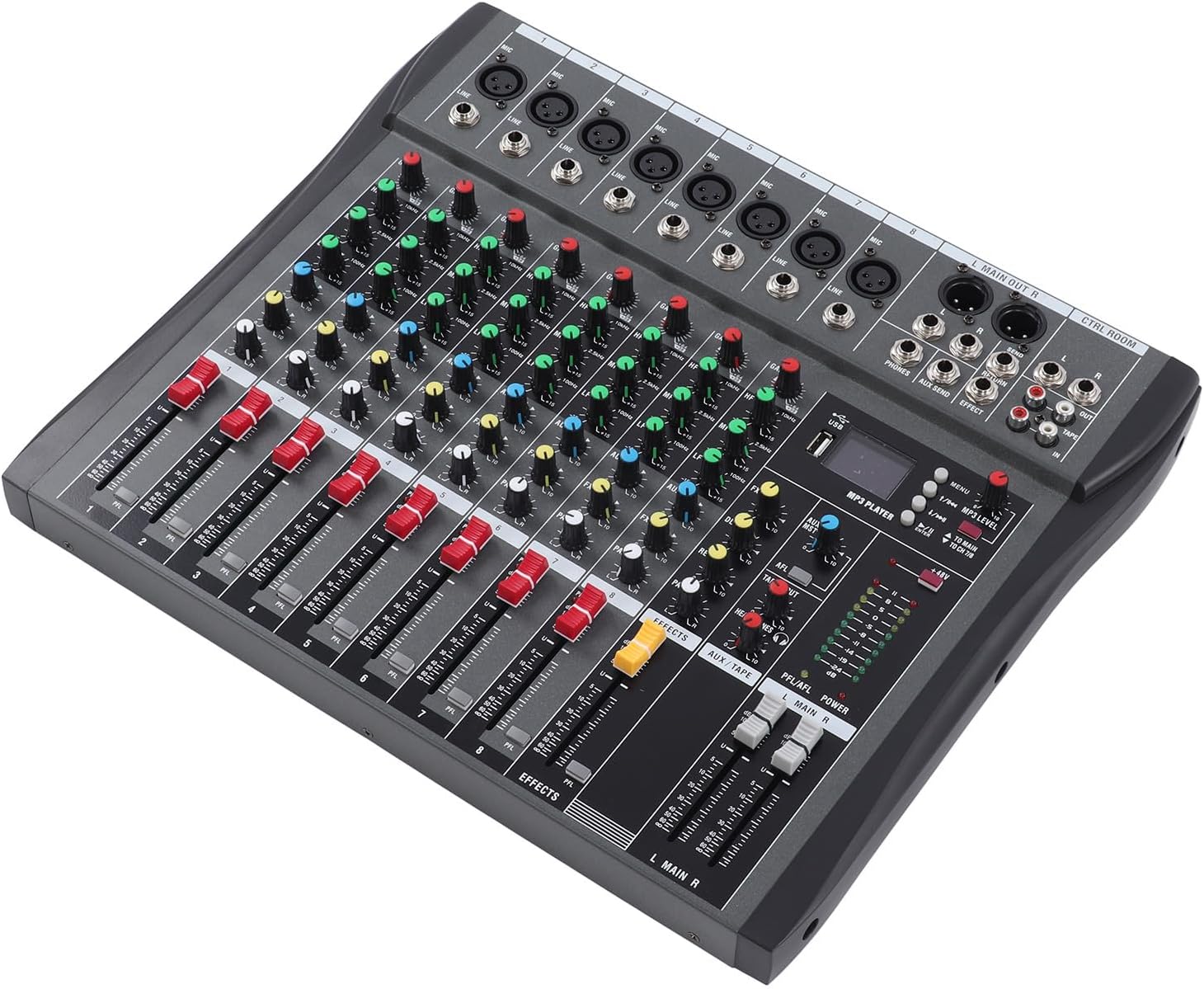

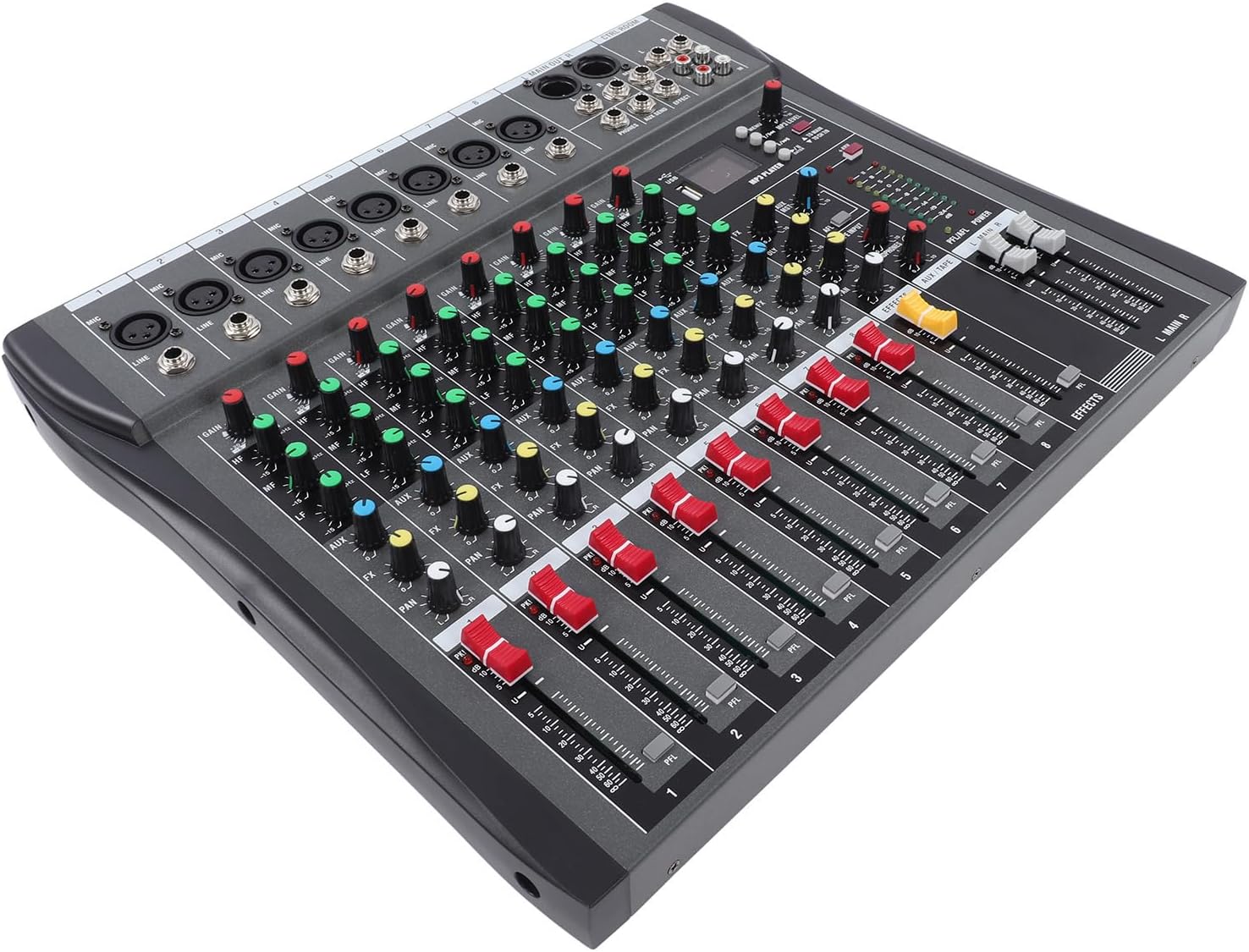

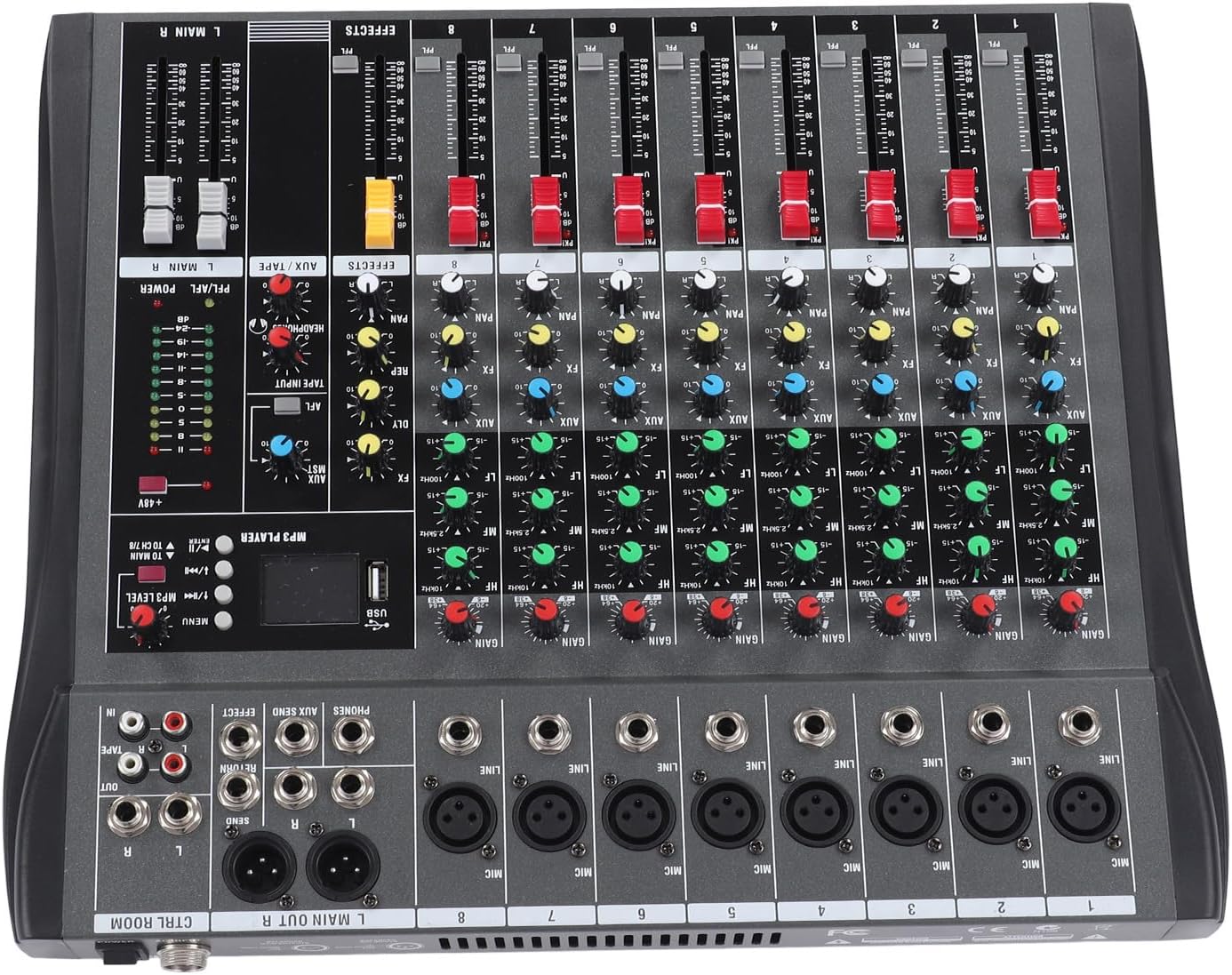

8 Channel Portable Audio 8 Channel Professional Sound Mixer, 8 Sound Mixer Detector Debugger Board with AC100‑240V

1. [Delay Effect] This mixer comes with reverberation delay effect, low noise, high dynamic margin mixer with simple features for professional and instrument sounds.
2. [Clean and Clear Sound] This 8 channel mixer delivers clean, clear sound. The noiseless output makes it ideal for live performances, stage shows, events and live mixing.
3. [Multi Interface Mode] Mixer debugger supports headphone, musical instrument, MIC, line or unbalanced 1/4in plug interface input to meet the needs of various input devices.
4. [Slide Fader] The 8 channel mixer's slide fader provides comprehensive dynamic control, and 3 band EQ adjustments per channel make it easy to deliver clear, studio quality music playback.

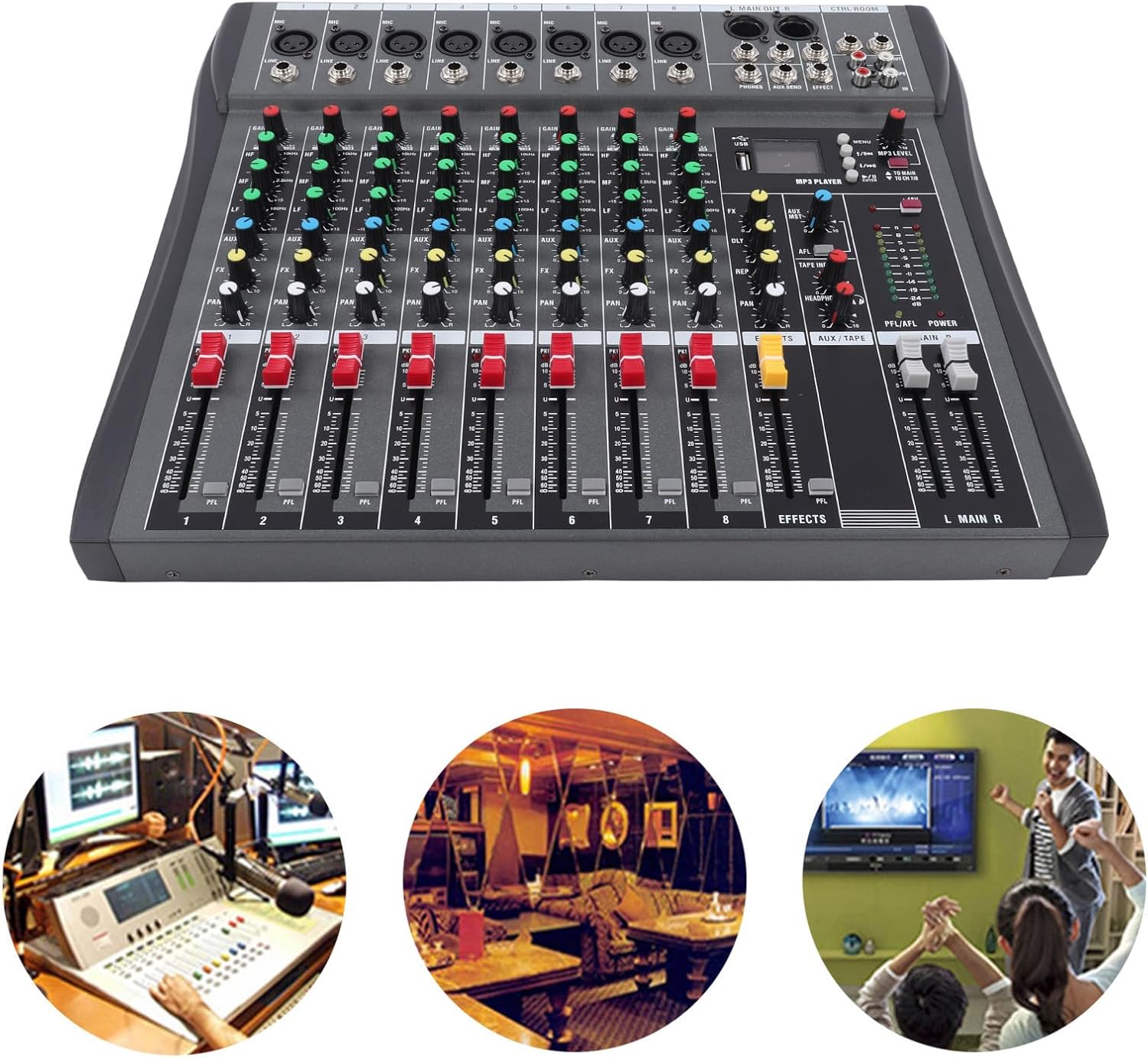

5. [Multipurpose] The mixer can be connected to the TV as a home karaoke system and can be used for home singing, parties, recording, live singing, radio, studio streaming.

Spec:
Item Type: Sound Debugger
Material: ABS, Aluminum Alloy
Maximum Input Levels:
MIC +24dBu
Line +24dBu
Maximum Output Levels:
XLR +26dBu
+20dBu
Main Meter: 10 Segment 24dB To CLIP
Channel Meter: 1 LED Indication
Frequency Response:20Hz To 30KHz 0.5dB
Common Mode Rejection Ratio:(MIC 1kHz)(CMRR (MIC 1kHz))>75dB
THD+N: Crosstalk At 1kHz:
Fader Shutoff >85dB
Mute Shutoff >85dB
Noise, Rms 22Hz To 22KHz: EIN -122dBu
Output Noise MONO EQ:
LF, Shelving, +/-15dB, 12KHz
HM, /Dip, +/-15dB, 2.5KHz
LF, Shelving, +/-15dB, 80Hz
Mono Channel:
XLR Balanced, Pin 2 Hot, 2K Ohm, Sensitivity -60 To +10 DBu
Balanced, Tip Hot, 10K Ohm, Sensitivity -40 To+10 DBu
XLR, +48V
2 Track Return: , Unbalanced, 4K Ohm, -2 DBu
2 Track Send: , Unbalanced, L/R Output: XLR Balanced, Pin 2 Hot,

How to Use:
Connect to the power supply and start to use.

PackageList:
1 x Sound
